Mfr Part #:

MEM2051-00-195-00-A

Mfr Name: GCT

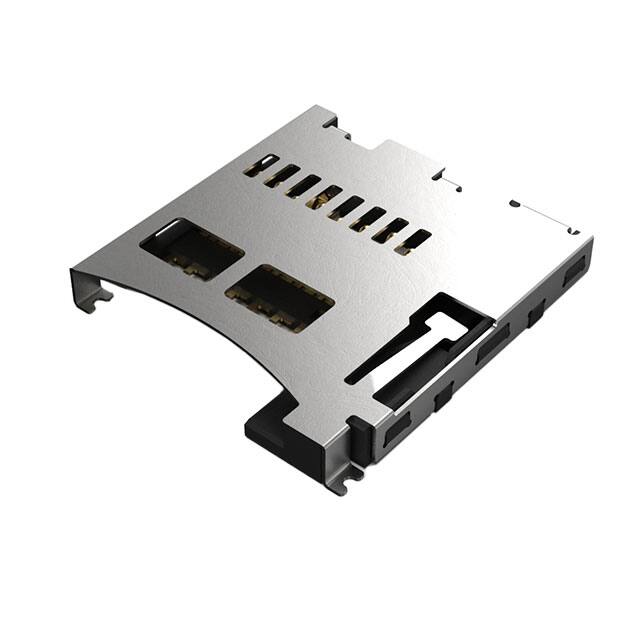

GCT MEM2051-00-195-00-A is a push-push Micro SD memory card connector with 9 positions, rated for 0.5A DC and 100V AC. It features a surface mount, right angle design with a 1.95mm profile.

✓ Total Stock: 16,000 pcs

$ Price Range: $0.58 - $1.08

MEM2051-00-195-00-A Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	8,000 pcs On Request	8000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
RAD ✓ Non-Authorised Inventory information	8,000 pcs On Request	8000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MEM2051-00-195-00-A Description

Short technical summary and product information.

The GCT MEM2051-00-195-00-A is a Micro SD memory card connector designed for push-push insertion and removal. It is a surface mount, right angle component with a standard top-mounting feature and a low 1.95mm profile above the board.

This connector is rated for a maximum current of 0.5A DC and a maximum voltage of 100V AC (RMS). It is specified for an operating temperature range of -40°C to +85°C. The contact resistance is less than 100 mΩ initially and after 5000 durability cycles, with a maximum of 140 mΩ after vibration testing. Insulation resistance is a minimum of 1000 MΩ, and the connector can withstand 500V AC dielectric strength for one minute.

The connector has 9 positions (8 + 1) and features gold flash contact finish. It is designed for a durability of 5000 cycles and includes an integrated card detection switch.

MEM2051-00-195-00-A Quick Information

Product Type: Memory Card Connector

Series: MEM2051

Canonical Name: Micro SD Memory Card Connector, Push-Push, SMT, 1.95mm Profile

Subcategory: Push-Push Type

MEM2051-00-195-00-A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MEM2051-00-195-00-A Estimated Pricing

Qty	Low	High
1+	$1.08	$1.08
1,000+	$0.58	$0.58

Estimated market price range - modelled values for guidance only, not live distributor offers.

MEM2051-00-195-00-A Features

Push-push Micro SD card insertion mechanism.
Rated for 0.5A DC and 100V AC.
Surface mount right angle design.
1.95mm low profile above board.
Durable for 5000 insertion cycles.

MEM2051-00-195-00-A Applications

Used in portable electronic devices.
Ideal for memory expansion in IoT modules.
Suitable for embedded system data storage.

MEM2051-00-195-00-A FAQs

7 frequently asked questions generated from this part’s specifications.

What is the current rating of the MEM2051-00-195-00-A?

The maximum current rating is 0.5A DC.

What is the voltage rating of this connector?

The maximum voltage rating is 100V AC (RMS).

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

What type of mounting does this connector use?

It uses surface mount, right angle mounting.

How many positions does the MEM2051-00-195-00-A have?

It has 9 positions (8 + 1).

What is the height above board for this connector?

The height above board is 1.95mm (0.077 inches).

What is the durability rating of this connector?

It is rated for 5000 insertion and removal cycles.

Category	PC Card Sockets
Manufacturer Name	GCT
Card Type	Secure Digital - microSD
Connector Type	Connector
Contact Finish	Gold
Contact Finish Thickness	Flash
Current Rating	0.5A DC
Durability	5000 cycles
Features	Switch
Height Above Board	0.077" (1.95mm)
Insertion, Removal Method	Push In, Push Out
Insulation Resistance	1000 MΩ
Lead Style	Gold
Mounting Feature	Normal, Standard - Top
Mounting Type	Surface Mount, Right Angle
Number of Positions	9 (8 + 1)
Operating Temperature Range	-40°C to +85°C
Tape & Reel	Yes
Voltage Rating	100V AC (RMS)
