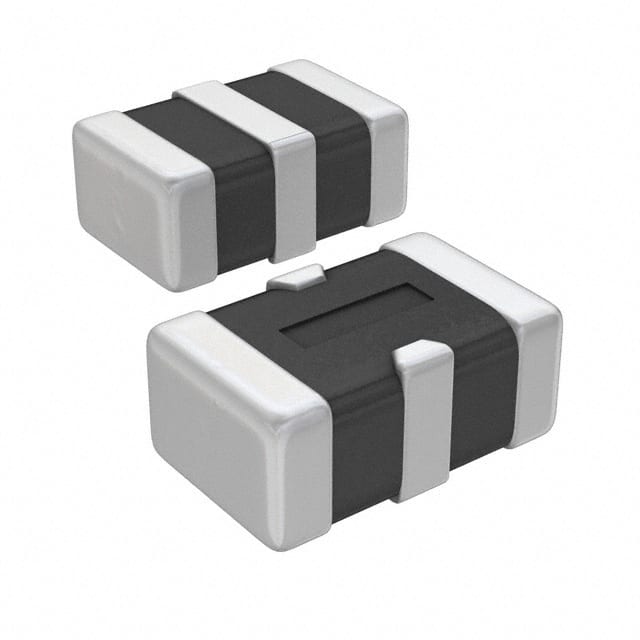

MEM2012T25R0 The TDK Corporation MEM2012T25R0 is an LC(T) type, low pass filter designed for data lines. It features a 25MHz cutoff frequency and a 150mA current rating.
Mfr Part #:

MEM2012T25R0

Available from 1 distributors
Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation MEM2012T25R0 is an LC(T) type, low pass filter designed for data lines. It features a 25MHz cutoff frequency and a 150mA current rating.
✓ Total Stock: 500 pcs
$ Price Range: $0.99

MEM2012T25R0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MEM2012T25R0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
Center
Current
ESD Protection
Filter Order
Height
Length
Mounting Type
Number of Channels
Operating Temperature
Rated Current
Rated Voltage
Tape & Reel
Technology
Type
Voltage
Width
View Similar Products (0)

MEM2012T25R0 Description

Short technical summary and product information.

The TDK Corporation MEM2012T25R0 is a surface mountable LC(T) type low pass filter. It is designed for signal line applications, specifically for data lines in mobile devices.



This filter operates with a cutoff frequency of 25MHz and provides an attenuation value of 20dB across the frequency range of 80MHz to 1GHz. It has a maximum rated current of 150mA and a maximum rated voltage of 10V. The filter is constructed with a monolithic structure for high reliability and features a closed magnetic circuit architecture to prevent crosstalk.



The MEM2012T25R0 is housed in an 0805 (2012 Metric) package with 3 PC pads. It operates within a temperature range of -40°C to 85°C. The filter is suitable for applications requiring effective noise suppression and covers a wide range of frequencies.

MEM2012T25R0 Quick Information

Product Type: EMIRFI Filter
Series: MEM2012T
Canonical Name: TDK Corporation MEM2012T Series LC(T) Low Pass Filter
Subcategory: Low Pass Filter

MEM2012T25R0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MEM2012T25R0 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

MEM2012T25R0 Features

  • LC(T) type low pass filter.
  • 25MHz cutoff frequency.
  • 20dB attenuation at 80MHz-1GHz.
  • 150mA rated current.
  • 0805 (2012 Metric) SMD package.

MEM2012T25R0 Applications

  • Suitable for mobile device data lines.
  • Used in RF noise suppression circuits.
  • Ideal for high-frequency filtering applications.
  • Applicable in compact electronic filter designs.

MEM2012T25R0 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the cutoff frequency of the MEM2012T25R0 filter?

The cutoff frequency of the MEM2012T25R0 filter is 25MHz.

What is the rated current for the MEM2012T25R0 filter?

The rated current for the MEM2012T25R0 filter is 150mA.

What is the operating temperature range for this filter?

The operating temperature range for the MEM2012T25R0 filter is -40°C to 85°C.

What type of package is the MEM2012T25R0 filter in?

The MEM2012T25R0 filter is in an 0805 (2012 Metric), 3 PC Pad package.

Is the MEM2012T25R0 filter RoHS compliant?

The MEM2012T25R0 filter is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the MEM2012T25R0?

The Moisture Sensitivity Level (MSL) for the MEM2012T25R0 is 1 Unlimited.
