| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Configuration | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| SVHC Present | |
| Speed | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

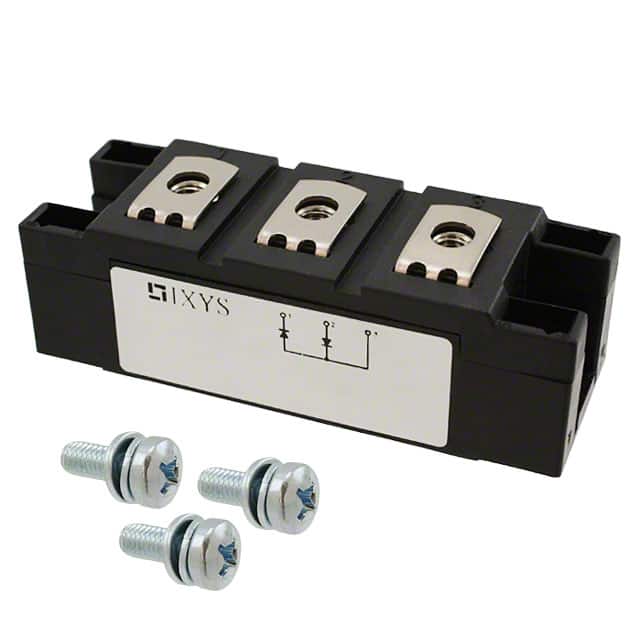

The IXYS MEK300-06DA is a dual common cathode fast recovery diode module designed for high-frequency switching applications. It features planar passivated chips with a reverse recovery time of 250 ns, ensuring low switching losses and soft recovery behavior. The module is rated for a repetitive peak reverse voltage of 600 V and an average rectified current of 304 A at a case temperature of 85°C.
Key electrical characteristics include a forward voltage drop of 1.36 V typical at 260 A, and a reverse leakage current of 12 mA at 600 V. The module offers an isolation voltage of 3600 V~, making it suitable for applications requiring galvanic isolation. It operates over a junction temperature range of -40°C to 150°C and is UL recognized (E 72873).
Packaged in the industry-standard Y4-M6 module with a DCB ceramic base plate, the MEK300-06DA is designed for chassis mounting. Mounting torque for M6 screws is 2.25-2.75 Nm, and terminal connection torque is 4.50-5.50 Nm. The module is ideal for use as antiparallel diodes for high-frequency switching devices, freewheeling diodes in converters and motor control circuits, inductive heating, UPS systems, and ultrasonic cleaners.
| Qty | Low | High |
|---|---|---|
| 1+ | $86.79 | $86.79 |
| 12+ | $70.03 | $70.03 |
| 102+ | $69.79 | $69.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The repetitive peak reverse voltage (VRRM) is 600 V.
The average rectified current (IFAVM) is 304 A at TC=85°C, rectangular, d=0.5.
The forward voltage is 1.36 V typical at 260 A forward current.
The reverse recovery time (trr) is 250 ns typical.
The package is Y4-M6 chassis mount.
The isolation voltage is 3600 V~ minimum (50/60 Hz, RMS, 1 min).
The junction temperature range is -40°C to 150°C.
