| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

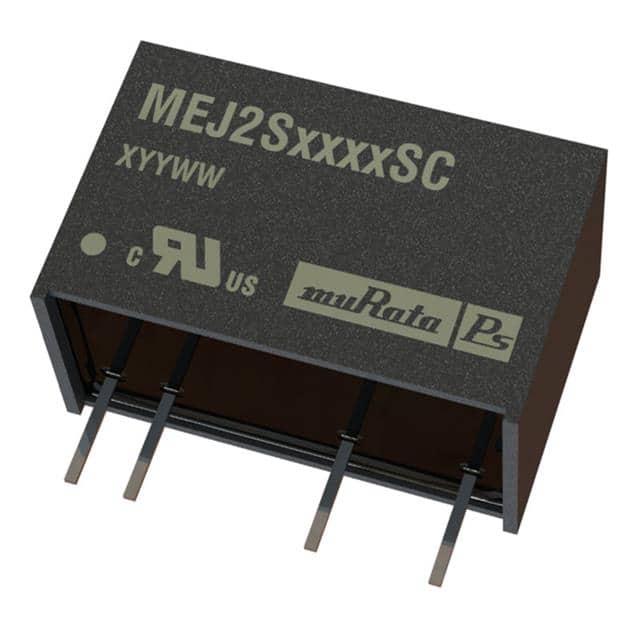

The Murata Power Solutions MEJ2S0505SC is a 2W isolated DC-DC converter in the MEJ2 series. It delivers a nominal 5V output at 400mA from a 4.5V to 5.5V input range. The converter features 5.2kVDC input-to-output isolation, making it suitable for applications requiring galvanic separation.
Key electrical specifications include a typical efficiency of 75% (minimum 72% at rated load), ripple and noise of 43mVp-p typical (55mVp-p maximum), and load regulation of 8.5% typical (10% maximum). The input current at rated load is 503mA typical.
The converter is housed in a 7-SIP module with 4 leads and through-hole mounting. Package dimensions are 19.7mm x 10.0mm x 12.7mm. It operates over a temperature range of -40°C to 85°C. The device is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.40 | $9.40 |
| 5+ | $9.09 | $9.09 |
| 10+ | $8.86 | $8.86 |
| 25+ | $8.68 | $8.68 |
| 50+ | $8.56 | $8.56 |
| 100+ | $8.48 | $8.48 |
| 500+ | $8.40 | $8.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 5V nominal and the output current is 400mA.
The input voltage range is 4.5V to 5.5V, with a nominal input of 5V.
The isolation voltage is 5.2kVDC.
The package is a 7-SIP Module with 4 leads, through-hole mounting.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 compliant as stated in the datasheet.
