| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

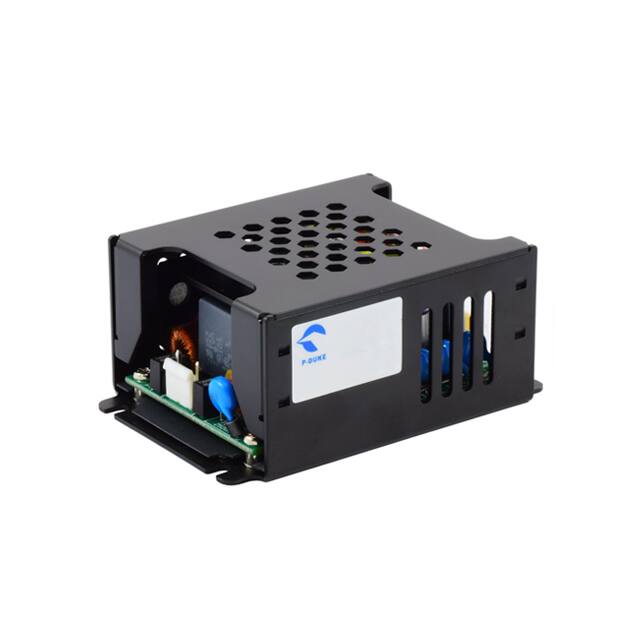

The P-DUKE MED100US15B is an enclosed AC/DC converter designed for industrial and medical applications. It delivers a 15VDC output at up to 6.67A, providing a total of 100W of power.
This converter operates with a wide universal input voltage range of 85 to 264 VAC and boasts a high efficiency of 92% at full load. It features low no-load power consumption under 0.3 Watts and low leakage current under 75µA. The unit is built with internal fuse protection and offers over-voltage, over-load, and short-circuit protection.
Designed for chassis mounting, the MED100US15B has dimensions of 91.4mm x 62.0mm x 39.1mm. It offers 4000 VAC isolation voltage and operates within a wide temperature range of -40°C to 85°C with derating. Safety approvals include CB, CE, cURus, and FCC, meeting standards like IEC/EN/ANSI/AAMI 60601-1 and IEC/UL/EN 62368-1.
The MED100US15B provides a single output voltage of 15 VDC.
The MED100US15B has a maximum output power of 100W.
The MED100US15B accepts a wide input voltage range of 85 to 264 VAC.
The MED100US15B has a typical efficiency of 92% at full load and 230VAC input.
The MED100US15B measures 91.4mm in length, 62.0mm in width, and 39.1mm in height.
The MED100US15B can operate in a temperature range of -40°C to 85°C, with derating.
