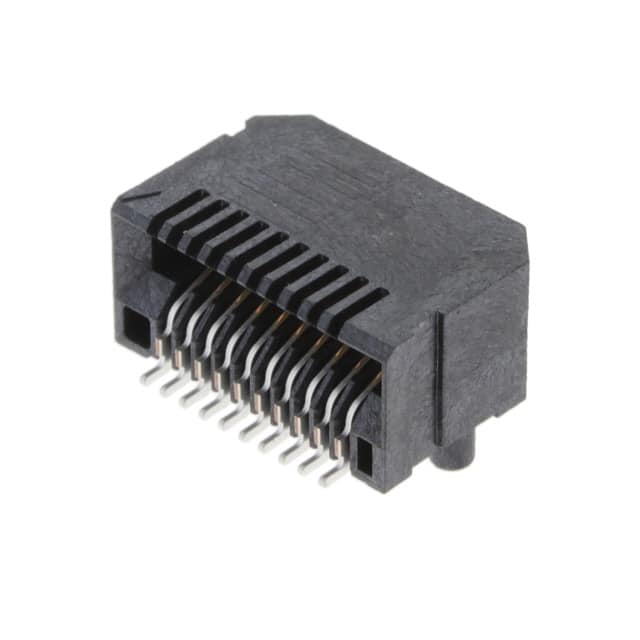

MECT-110-01-M-D-RA1-TR Samtec MECT-110-01-M-D-RA1-TR is a 20-position SFP+ edge card receptacle connector with 0.80mm pitch, surface mount right angle termination, and gold-plated contacts.
Mfr Part #:

MECT-110-01-M-D-RA1-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec MECT-110-01-M-D-RA1-TR is a 20-position SFP+ edge card receptacle connector with 0.80mm pitch, surface mount right angle termination, and gold-plated contacts.
✓ Total Stock: 1,000 pcs
$ Price Range: $1.42 - $2.15

MECT-110-01-M-D-RA1-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MECT-110-01-M-D-RA1-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating
Features
Halogen Free
Impedance
Insulator Material
Lead Spacing
Mounting Type
Number of Positions
Operating Temperature Range
Pitch
Prop 65
SVHC Present
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

MECT-110-01-M-D-RA1-TR Description

Short technical summary and product information.

The Samtec MECT-110-01-M-D-RA1-TR is a 20-position SFP+ edge card receptacle connector designed for high-speed differential signaling. It features a 0.80mm pitch, surface mount right angle mounting, and gold-plated phosphor bronze contacts with 15µ" gold finish. The connector is rated for 100Ω impedance, 2A current per pin, and 275 VAC / 389 VDC voltage. It operates over a temperature range of -55°C to +125°C and is housed in a black LCP insulator. The part includes a board guide feature and mates with SFP, SFP+, XFP, or XENPAK transceivers. Packaging is Tape & Reel with a standard quantity of 500 pieces.

MECT-110-01-M-D-RA1-TR Quick Information

Product Type: Pluggable Connector Assembly
Series: MECT
Canonical Name: Samtec MECT Series 0.80mm Pitch SFP+ Edge Card Receptacle Connector
Subcategory: Edge Card Connector

MECT-110-01-M-D-RA1-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL Level 1 - Unlimited
REACH Status: REACH Unaffected

MECT-110-01-M-D-RA1-TR Estimated Pricing

Qty Low High
1+ $2.15 $2.15
50+ $2.07 $2.07
100+ $1.88 $1.88
500+ $1.75 $1.75
1,000+ $1.73 $1.73
2,000+ $1.58 $1.58
5,000+ $1.42 $1.42

Estimated market price range - modelled values for guidance only, not live distributor offers.

MECT-110-01-M-D-RA1-TR Features

  • 20-position SFP+ edge card receptacle.
  • 0.80mm pitch with SMT right angle mounting.
  • Gold-plated phosphor bronze contacts.
  • Rated for 100Ω differential impedance.
  • Operates from -55°C to +125°C.

MECT-110-01-M-D-RA1-TR Applications

  • Used in SFP and SFP+ transceiver interfaces.
  • Ideal for XFP and XENPAK module connections.
  • Suitable for high-speed data communication systems.

MECT-110-01-M-D-RA1-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the MECT-110-01-M-D-RA1-TR have?

20 positions.

What is the pitch of this connector?

0.80 mm.

What is the current rating?

2 A per pin (6 pins powered).

What is the voltage rating?

275 VAC / 389 VDC.

What mounting type does this connector use?

Surface Mount, Right Angle.

What is the operating temperature range?

-55°C to +125°C.

What transceivers does this connector mate with?

SFP, SFP+, XFP, or XENPAK transceivers.
