| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,336 pcs
|
2336 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Data Rate | |
| Features | |
| Gender | |
| Halogen Free | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Read Out | |
| Standard Package Qty | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

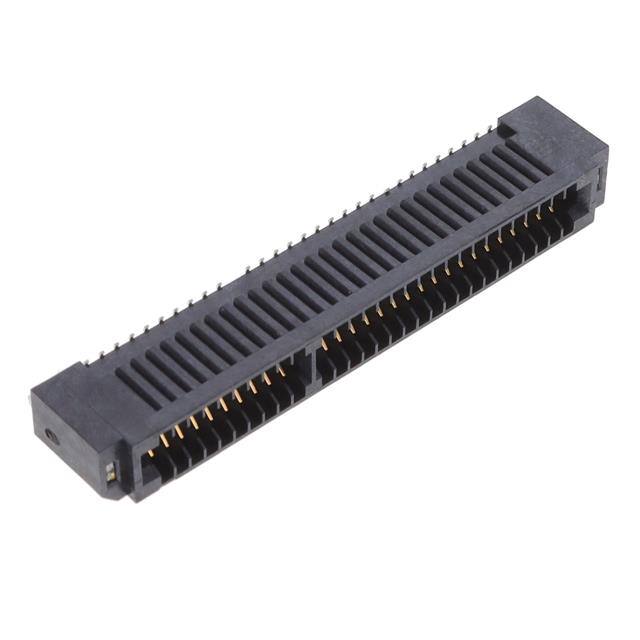

The Samtec MECF-30-01-L-DV-WT-K-TR is a .050" (1.27 mm) pitch mini edge card connector from the MECF-DV series. It is a dual row, female connector with 60 positions and accepts non-specified dual edge cards of .062" (1.57 mm) thickness. The connector features cantilever beryllium copper contacts with 10.0µin (0.25µm) gold finish for reliable electrical performance.
This connector is rated for 3.5 A max current and 280 VAC/396 VDC max voltage. It supports data rates up to 25 Gbps NRZ, making it suitable for high-speed digital applications. The operating temperature range is -55°C to 125°C.
The connector is surface mount with solder termination and includes a board guide feature. It is packaged in tape and reel with a standard quantity of 250 pieces per reel. The housing is black in color.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.09 | $8.09 |
| 10+ | $6.98 | $6.98 |
| 25+ | $6.55 | $6.55 |
| 50+ | $6.25 | $6.25 |
| 100+ | $5.87 | $5.87 |
| 250+ | $5.33 | $5.33 |
| 500+ | $5.07 | $5.07 |
| 1,000+ | $4.58 | $4.58 |
| 2,000+ | $4.42 | $4.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions in a dual row configuration.
1.27 mm (0.050").
3.5 A max.
280 VAC / 396 VDC max.
Surface mount with solder termination.
-55°C to 125°C.
25 Gbps NRZ.
