| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style |

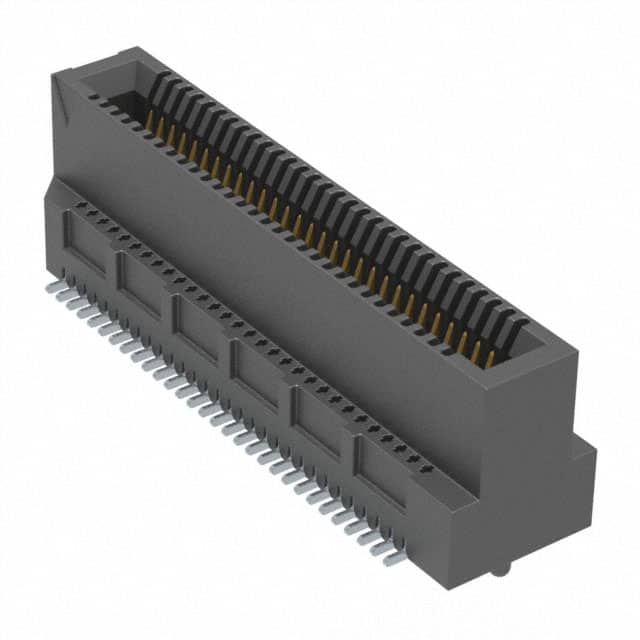

The MEC8-130-02-L-DV-A-TR is a dual edge female connector designed for card edge applications. It has 60 positions arranged in 2 rows with a pitch of 0.80mm (0.031 inches). The connector uses hairpin bellows contacts made of phosphor bronze with a gold finish of 10.0 microinches (0.25 micrometers).
The connector is surface mount with solder termination and includes a board guide feature. It is rated for operating temperatures from -55°C to 125°C. The card thickness supported is 0.062 inches (1.57mm). The connector body is black.
This connector is suitable for applications requiring a reliable dual read out connection to a circuit board edge. The surface mount design allows for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 175+ | $4.93 | $4.93 |
| 350+ | $4.86 | $4.86 |
| 875+ | $4.78 | $4.78 |
| 2,450+ | $4.57 | $4.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 60 positions.
The pitch is 0.80mm (0.031 inches).
It is surface mount with solder termination.
It operates from -55°C to 125°C.
The contacts have a gold finish of 10.0 microinches (0.25 micrometers).
