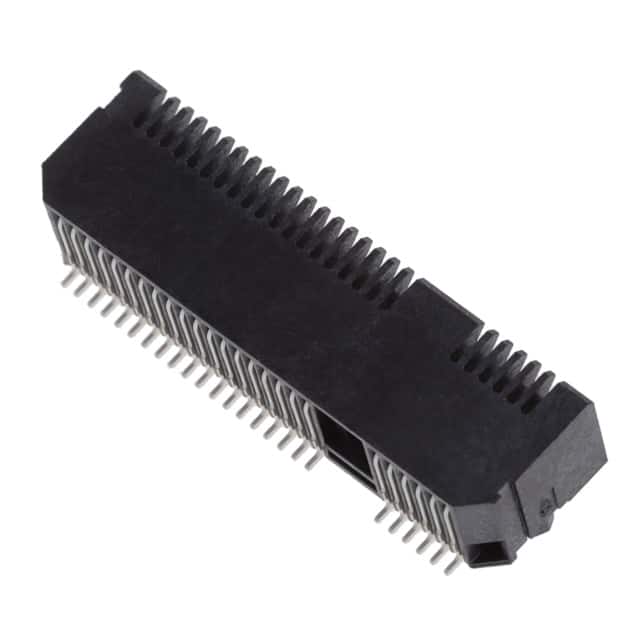

The Samtec MEC8-125-02-L-D-RA1-TR is a 50-position dual read female card edge connector designed for surface mount applications. It features a 0.80mm (0.031") pitch and a dual readout configuration, allowing connection to both sides of a mating edge card. The connector accepts a card thickness of 0.062" (1.57mm) and uses hairpin bellows contacts made of phosphor bronze with a 10.0µin (0.25µm) gold finish for reliable electrical contact.
This connector incorporates a board guide feature to assist with alignment during card insertion. It is rated for an operating temperature range of -55°C to 125°C, making it suitable for demanding environments. The black insulator body accommodates a non-specified dual edge card type and is terminated via surface mount solder pads.
The MEC8 series edgeboard connectors are commonly used in high-density interconnects where board-to-board or card-to-backplane connectivity is required. The dual row configuration offers 25 contacts per row, providing a compact solution for signal and power distribution.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.39 | $7.39 |
| 10+ | $6.39 | $6.39 |
| 25+ | $5.90 | $5.90 |
| 50+ | $5.55 | $5.55 |
| 100+ | $5.14 | $5.14 |
| 225+ | $4.85 | $4.85 |
| 450+ | $4.69 | $4.69 |
| 900+ | $4.63 | $4.63 |
| 1,800+ | $4.33 | $4.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.80mm (0.031 inches).
The connector has 50 positions arranged in 2 rows.
Surface mount (SMT) with solder termination.
-55°C to 125°C.
Gold finish with 10.0µin (0.25µm) thickness over phosphor bronze contact material.
The connector accepts a card thickness of 0.062 inches (1.57mm).
