| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
51 pcs
|
51 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
51 pcs
|
51 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Read Out | |
| Tape & Reel | |
| Termination |

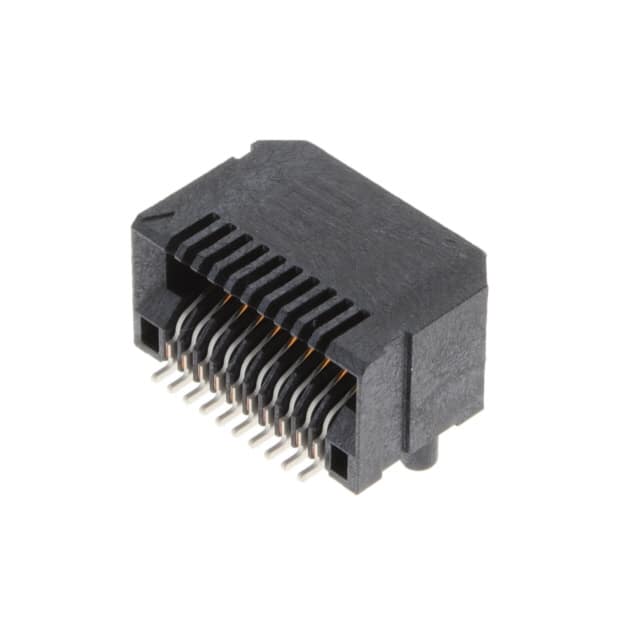

The Samtec MEC8-110-02-L-D-RA1-TR is a female edgeboard connector featuring a dual readout design with 20 positions arranged in 2 rows. It uses a non-specified dual edge card type and a card thickness of 0.062" (1.57mm). The contact system uses hairpin bellows contacts made of phosphor bronze with a 10.0µin gold finish, providing reliable electrical connection. The connector is surface mount with solder termination, and includes a board guide feature for alignment. The operating temperature range is -55°C to 125°C. Pitch is 0.80mm (0.031"). The housing is black. This connector is suitable for various edgecard mating applications requiring a 0.062" board.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.03 | $6.03 |
| 25+ | $5.63 | $5.63 |
| 50+ | $5.32 | $5.32 |
| 100+ | $5.05 | $5.05 |
| 300+ | $4.52 | $4.52 |
| 900+ | $4.30 | $4.30 |
| 2,400+ | $3.46 | $3.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.80mm (0.031")
20 positions in 2 rows
Surface Mount with solder termination
-55°C to 125°C
Phosphor bronze contacts with 10.0µin gold finish
