| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Gender | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Tape & Reel | |
| Termination |

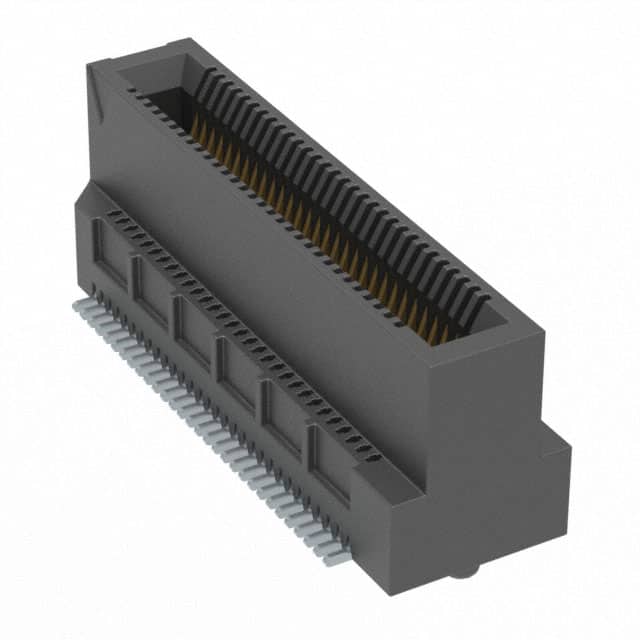

The Samtec MEC6-130-02-L-DV-A is a female edgeboard connector designed for non-specified dual edge card applications. It features 60 positions arranged in 2 rows with a 0.64mm (0.025 inch) pitch, providing a compact, high-density interconnection solution.
The connector accepts a 1.57mm (0.062 inch) thick PCB and uses dual read out for efficient signal routing. Contacts are made of phosphor bronze with gold plating (0.25µm), ensuring reliable conductivity and corrosion resistance. The connector is surface mount with solder termination, and includes a board guide for accurate alignment during assembly.
Operating temperature range is -55°C to 125°C, making it suitable for a wide variety of environments. The housing is black. This connector is part of the MEC6 series from Samtec, offering high reliability for card edge applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.43 | $5.43 |
| 10+ | $5.34 | $5.34 |
| 234+ | $4.45 | $4.45 |
| 546+ | $4.27 | $4.27 |
| 1,014+ | $4.07 | $4.07 |
| 2,574+ | $3.79 | $3.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions in 2 rows.
0.64mm (0.025 inches).
Surface mount with solder termination.
-55°C to 125°C.
