| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Features | |
| Gender | |
| Insulator Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

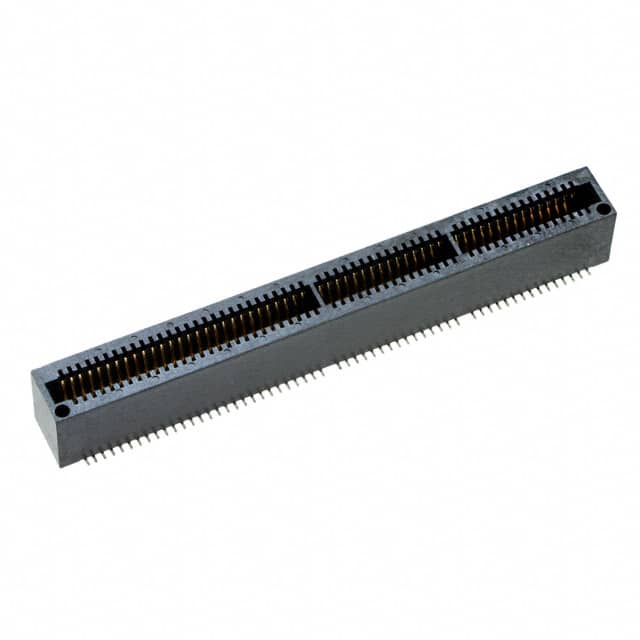

The Samtec MEC1-160-02-L-D-A is a 120 position dual edge female card edge connector from the MEC1 series. It features a 1.00mm pitch and is designed for surface mount soldering. The connector accepts a 1.57mm thick card and uses loop bellows beryllium copper contacts with 10µin gold plating for reliable signal integrity. The black liquid crystal polymer insulator provides a robust housing with an integrated board guide. Electrical ratings include 2.2A per contact (2 pins powered) and 250 VAC / 354 VDC. The operating temperature range is -55°C to +125°C. This connector is lead-free solderable and RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.37 | $8.37 |
| 8+ | $7.56 | $7.56 |
| 24+ | $6.16 | $6.16 |
| 56+ | $5.79 | $5.79 |
| 104+ | $5.68 | $5.68 |
| 256+ | $5.51 | $5.51 |
| 504+ | $5.44 | $5.44 |
| 1,000+ | $5.20 | $5.20 |
| 2,000+ | $4.98 | $4.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
120 positions arranged in 2 rows (dual readout).
1.00mm (0.039 inches).
2.2A per contact when 2 pins are powered.
250 VAC / 354 VDC.
Surface mount with solder termination.
-55°C to +125°C.
Beryllium copper contacts with 10µin (0.25µm) gold plating.
