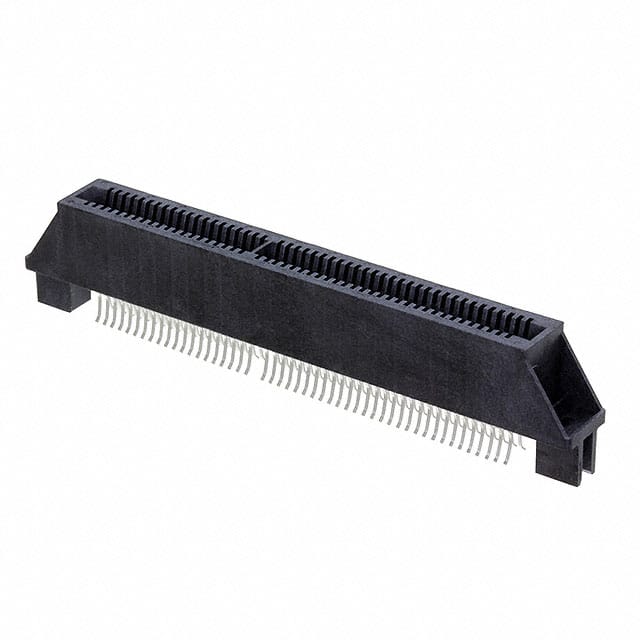

MEC1-150-02-L-D-EM2 The MEC1-150-02-L-D-EM2 is a 100-position, dual female edgeboard connector from Samtec. It features a 1.00mm pitch, gold contact finish, and straddle mount design.
Mfr Part #:

MEC1-150-02-L-D-EM2

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The MEC1-150-02-L-D-EM2 is a 100-position, dual female edgeboard connector from Samtec. It features a 1.00mm pitch, gold contact finish, and straddle mount design.
✓ Total Stock: 2 pcs
$ Price Range: $7.79 - $11.21

MEC1-150-02-L-D-EM2 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MEC1-150-02-L-D-EM2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Thickness
Card Type
Color
Contact Finish
Contact Finish Thickness
Contact Material
Contact Type
Gender
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Read Out
Tape & Reel
Termination
View Similar Products (0)

MEC1-150-02-L-D-EM2 Description

Short technical summary and product information.

The MEC1-150-02-L-D-EM2 is a 100-position, dual female edgeboard connector from Samtec, designed for board edge mounting with a straddle mount configuration. It features a 1.00mm (0.039") pitch and 2 rows of contacts, providing a compact, high-density interconnect solution.



The connector uses loop bellows contacts made of phosphor bronze with a gold finish (0.25µm thickness) for reliable electrical performance and corrosion resistance. It supports a card thickness of 1.57mm and is rated for operating temperatures from -55°C to 125°C.



Solder termination is used for secure attachment. The connector is finished in black and is listed as RoHS3 compliant, REACH unaffected, and MSL 1 (unlimited). This product is suitable for applications requiring a durable, high-density edge card connection.

MEC1-150-02-L-D-EM2 Quick Information

Product Type: Edgeboard Connector
Series: MEC1
Canonical Name: MEC1-150-02-L-D-EM2 Samtec Edgeboard Connector, Dual Female, 100 Positions, 1.00mm Pitch
Subcategory: Edgeboard Connectors

MEC1-150-02-L-D-EM2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MEC1-150-02-L-D-EM2 Estimated Pricing

Qty Low High
1+ $11.21 $11.21
10+ $11.20 $11.20
99+ $9.05 $9.05
528+ $8.54 $8.54
1,023+ $7.79 $7.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

MEC1-150-02-L-D-EM2 Features

  • 100-position dual readout design.
  • 1.00mm pitch for high density.
  • Gold contact finish for reliability.
  • Loop bellows contact type.
  • Straddle mount board edge mounting.

MEC1-150-02-L-D-EM2 Applications

  • Used in high-density interconnect systems.
  • Suitable for mezzanine card connections.
  • Ideal for edge card to motherboard.

MEC1-150-02-L-D-EM2 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the MEC1-150-02-L-D-EM2 have?

100 positions.

What is the pitch of this connector?

1.00mm (0.039").

What is the mounting type?

Board Edge, Straddle Mount.

What is the contact finish?

Gold with 0.25µm thickness.

What is the operating temperature range?

-55°C to 125°C.

How many rows does it have?

2 rows.

What card thickness does it support?

1.57mm (0.062").
