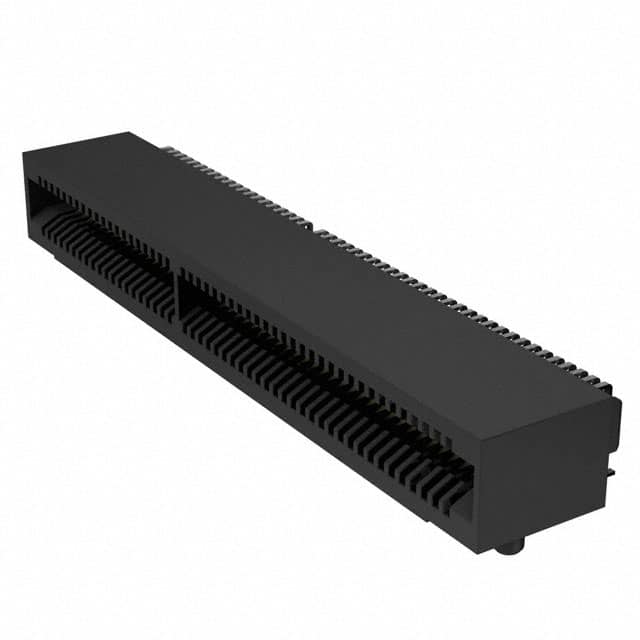

MEC1-150-02-F-D-RA1-SL Samtec MEC1-150-02-F-D-RA1-SL is a 100 position, 1.00mm pitch, dual row female edgeboard connector with gold plated phosphor bronze loop bellows contacts. Surface mount, right angle termination with board lock feature.
Mfr Part #:

MEC1-150-02-F-D-RA1-SL

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec MEC1-150-02-F-D-RA1-SL is a 100 position, 1.00mm pitch, dual row female edgeboard connector with gold plated phosphor bronze loop bellows contacts. Surface mount, right angle termination with board lock feature.
✓ Total Stock: 73 pcs
$ Price Range: $4.43 - $8.38

MEC1-150-02-F-D-RA1-SL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
73 pcs
On Request
73 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MEC1-150-02-F-D-RA1-SL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Thickness
Card Type
Color
Contact Finish
Contact Finish Thickness
Contact Material
Contact Type
Features
Gender
Lead Spacing
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Read Out
Tape & Reel
Termination
Termination Style
View Similar Products (0)

MEC1-150-02-F-D-RA1-SL Description

Short technical summary and product information.

The Samtec MEC1-150-02-F-D-RA1-SL is a high-density edgeboard connector from the MEC1 series, featuring 100 positions arranged in two rows with a 1.00mm (0.039") pitch. Designed for non-specified dual edge cards with a thickness of 0.062" (1.57mm), this connector uses a female gender with loop bellows contact type on phosphor bronze base material. Contacts are finished with 3.00µin (0.076µm) gold for reliable signal integrity. The connector supports a wide operating temperature range of -55°C to 125°C.



The connector is surface mounted with a right angle orientation and uses solder termination. It includes a board lock feature for secure attachment during assembly. The dual readout design allows for versatile signal routing. The housing is black in color.



This edgeboard connector is suitable for applications requiring a compact, reliable interconnection solution where space is limited. The 1.00mm pitch and 100 position count make it ideal for high-density card edge interfaces in industrial, communications, or computing equipment.

MEC1-150-02-F-D-RA1-SL Quick Information

Product Type: Edgeboard Connector
Series: MEC1-150
Canonical Name: Samtec MEC1-150-02-F-D-RA1-SL Edgeboard Connector
Subcategory: Edgeboard Connector

MEC1-150-02-F-D-RA1-SL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MEC1-150-02-F-D-RA1-SL Estimated Pricing

Qty Low High
1+ $8.38 $8.38
10+ $7.12 $7.12
30+ $6.82 $6.82
50+ $6.25 $6.25
100+ $5.73 $5.73
500+ $5.28 $5.28
1,000+ $4.86 $4.86
2,000+ $4.43 $4.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

MEC1-150-02-F-D-RA1-SL Features

  • 100 position dual row female connector.
  • 1.00mm (0.039") contact pitch.
  • Surface mount, right angle termination.
  • Gold plated phosphor bronze loop bellows contacts.
  • Board lock feature for secure mounting.

MEC1-150-02-F-D-RA1-SL Applications

  • High density card edge interface applications.
  • Industrial control and data communication modules.
  • Computing and peripheral card connections.
  • Test and measurement equipment.

MEC1-150-02-F-D-RA1-SL FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the MEC1-150-02-F-D-RA1-SL have?

100 positions.

What is the pitch of this connector?

1.00mm (0.039").

What mounting type does this connector use?

Surface mount, right angle.

What is the operating temperature range?

-55°C to 125°C.

What is the contact material and finish?

Phosphor bronze contact material with 3.00µin (0.076µm) gold contact finish.

What card thickness is this connector designed for?

0.062" (1.57mm).
