| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
109 pcs
|
109 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Halogen Free | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Tape & Reel | |
| Termination |

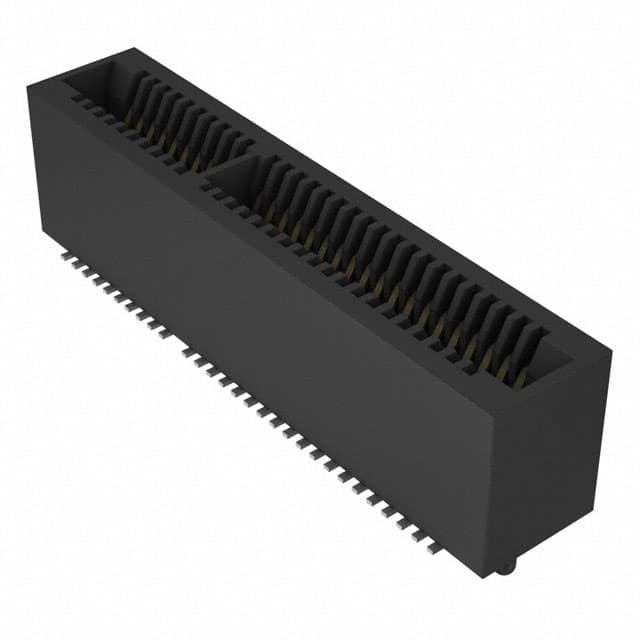

The Samtec MEC1-130-02-L-D-A-K-TR is a 60-position dual female edgeboard connector designed for high-density card edge applications. It features a 1.00mm (0.039") pitch and accepts 0.062" (1.57mm) thick PCBs.
The connector uses loop bellows contacts made of phosphor bronze with a 10µin gold finish, ensuring reliable electrical performance. The dual readout configuration provides two rows of contacts for versatile signal routing. It is surface mount with solder termination and includes a board guide for alignment and pick-and-place features for automated assembly.
Operating temperature ranges from -55°C to 125°C, making it suitable for demanding environments. The black housing and compact design support space-constrained layouts. Packaging is tape and reel (inferred) for automated production. Compliance data is unverified but claims RoHS3, MSL 1, and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.97 | $6.97 |
| 10+ | $5.98 | $5.98 |
| 25+ | $5.74 | $5.74 |
| 50+ | $5.47 | $5.47 |
| 150+ | $4.49 | $4.49 |
| 900+ | $3.92 | $3.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 60 positions arranged in 2 rows with dual readout.
The pitch is 1.00mm (0.039 inches).
It is surface mount with solder termination.
The operating temperature range is -55°C to 125°C.
Contacts are phosphor bronze with a 10.0µin (0.25µm) gold finish.
It accepts card thickness of 0.062 inches (1.57mm).
It includes a board guide for alignment and pick-and-place feature for automated assembly.
