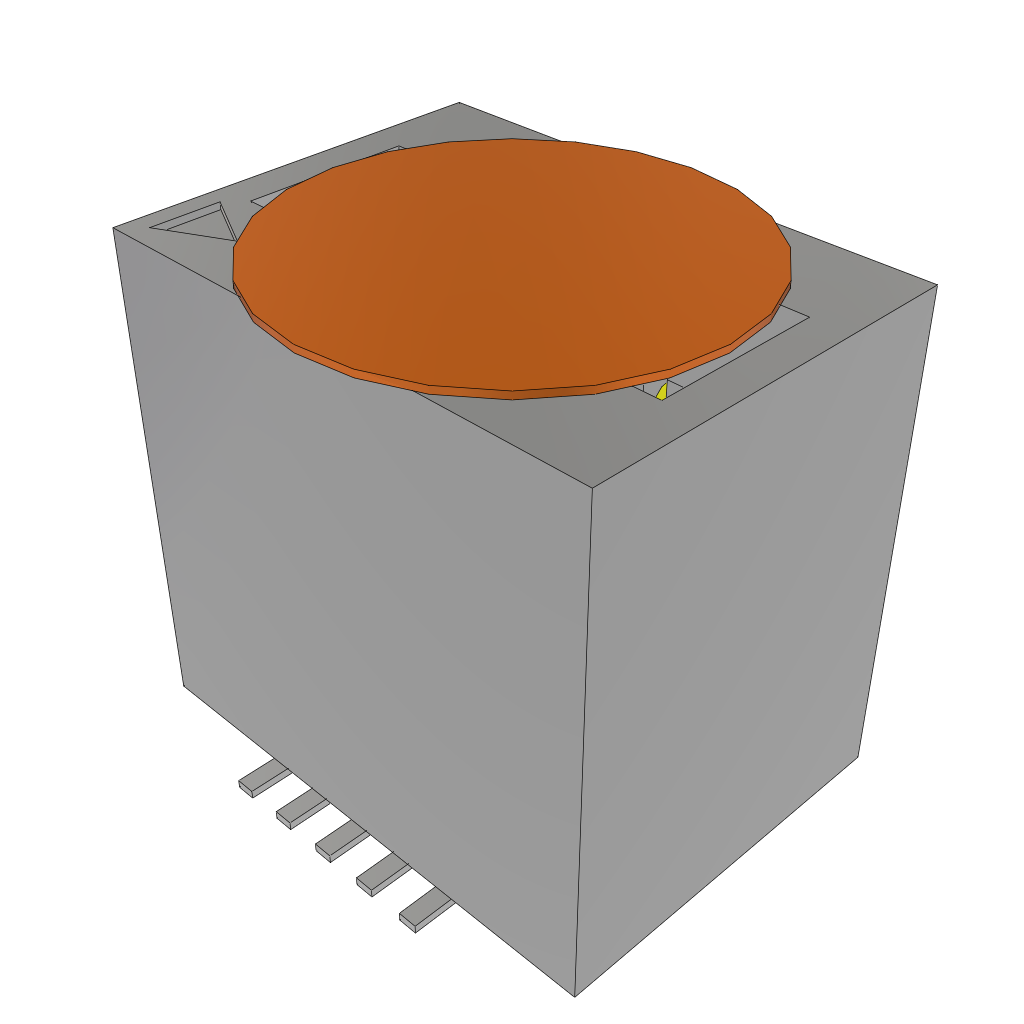

MEC1-105-02-F-D-NP-K The Samtec Inc. MEC1-105-02-F-D-NP-K is a 1.00 mm mini edge card socket with 10 positions and a double-row design. It features a surface mount termination and gold contact finish.
Mfr Part #:

MEC1-105-02-F-D-NP-K

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec Inc. MEC1-105-02-F-D-NP-K is a 1.00 mm mini edge card socket with 10 positions and a double-row design. It features a surface mount termination and gold contact finish.
✓ Total Stock: 455 pcs
$ Price Range: $1.00

MEC1-105-02-F-D-NP-K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
455 pcs
On Request
455 pcs On Request 1 On Request On Request 11+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MEC1-105-02-F-D-NP-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Thickness
Card Type
Color
Contact Finish
Contact Finish Thickness
Contact Material
Contact Type
Current Rating
Features
Gender
Halogen Free
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Read Out
Tape & Reel
Termination
View Similar Products (0)

MEC1-105-02-F-D-NP-K Description

Short technical summary and product information.

This Samtec Inc. MEC1-105-02-F-D-NP-K is a 1.00 mm pitch mini edge card socket designed for vertical mounting. It accepts 0.062" (1.60 mm) thick cards and offers a double-row configuration with up to 10 positions. The socket features a surface mount termination and a gold contact finish for reliable connections.



Key electrical specifications include a current rating of 2.2 A max and a voltage rating of 250 VAC/354 VDC max. The operating temperature range is -55°C to 125°C. The contact material is Beryllium Copper with a contact finish thickness of 3.00µin. This series has a Channel Performance Metric (CPM) of 14 Gbps NRZ, indicating its capability for high-speed data transmission.



The MEC1-105-02-F-D-NP-K is suitable for applications requiring a compact and robust edge card connection. Its design includes features like pick and place compatibility for automated assembly. The product is available in tube packaging, with 56 parts per package.

MEC1-105-02-F-D-NP-K Quick Information

Product Type: Edge Card Socket
Series: MEC1
Canonical Name: Samtec Inc. MEC1-105-02-F-D-NP-K 1.00 mm Mini Edge Card Socket, Vertical
Subcategory: Micro Pitch Edge Card Sockets

MEC1-105-02-F-D-NP-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MEC1-105-02-F-D-NP-K Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

MEC1-105-02-F-D-NP-K Features

  • 10 positions in two rows
  • 1.00mm pitch for precise connections
  • Surface mount solder termination
  • Contact material is Beryllium Copper with gold finish
  • Operates from -55°C to 125°C

MEC1-105-02-F-D-NP-K Applications

  • Used in electronic device edge connections
  • Suitable for communication equipment
  • Ideal for industrial control systems
  • Fits PCB edge mounting requirements

MEC1-105-02-F-D-NP-K FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the MEC1-105-02-F-D-NP-K connector?

The pitch is 1.00mm (0.039 inches).

How many positions does this connector have?

It has 10 positions.

What is the current rating of this connector?

The maximum current rating is 2.2A.

What is the voltage rating of this connector?

It supports up to 250 VAC and 354 VDC.

What mounting type does this connector use?

It is designed for surface mount.
