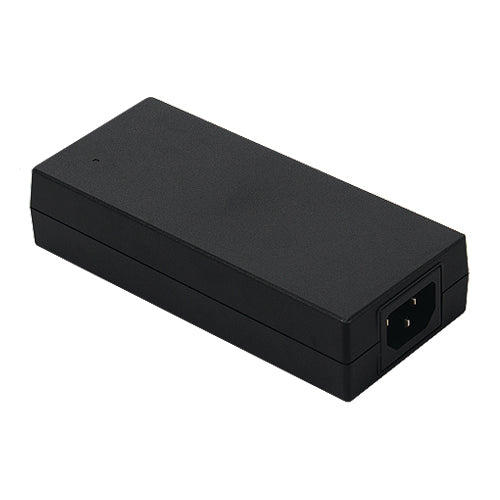

The Delta Electronics MEA-250A24C H-A is a versatile AC/DC desktop power adapter designed for ITE (Commercial) and Medical applications. It delivers a stable 24Vdc output with a maximum current of 10.42A, providing a total power of 250W.
This adapter operates within a wide input voltage range of 90~264Vac and meets Energy Efficiency Level VI standards, ensuring reduced power consumption. Key features include an IEC 320-C14 input connector for easy power cord connection and a 6-position rectangular output connector. The operating temperature range is from -5°C to +60°C.
With dimensions of 200.0mm x 100.0mm x 43.0mm, it is suitable for desktop use. The unit is compliant with various safety standards including IEC/EN 60601-1, ANSI/AAMI ES 60601-1, and UL 60950-1, making it appropriate for medical applications. It also supports 2xMOPP and is suitable for BF applications.
The input voltage range is 90-264Vac.
The output voltage is 24Vdc and the maximum output current is 10.42A.
The maximum power is 250W.
The operating temperature range is -5°C to +60°C.
The adapter meets Level VI energy efficiency standards.
The dimensions are 200mm (length) x 100mm (width) x 43mm (height).
It is approved by CB Scheme, CE, PSE, RCM, and UL.
