| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage |

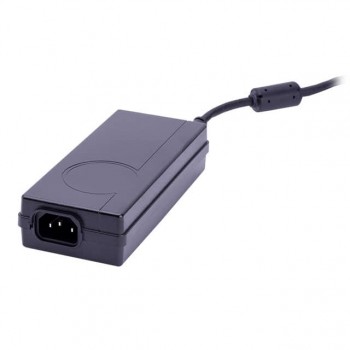

This SL Power Electronics ME90A1502Q01 is an AC/DC desktop adapter designed for reliable power delivery. It operates with an input voltage range of 90 to 264 VAC and provides a stable 15V output at a maximum current of 6A, delivering a total of 90W.
The adapter features Level VI efficiency, ensuring optimal power usage and reduced energy consumption. It is approved by CE, indicating compliance with European safety standards. The unit is designed for international utilization and is suitable for medical applications.
Key specifications include a compact form factor (150.0mm x 65.5mm x 34.0mm) and a positive center barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm). The input connector is IEC 320-C18, and the input cord is sold separately. The operating temperature range is -20°C to 50°C.
The ME90A1502Q01 adapter has an output voltage of 15V and a maximum output current of 6A.
The power rating of the ME90A1502Q01 adapter is 90W.
The ME90A1502Q01 adapter meets Level VI efficiency standards.
The ME90A1502Q01 adapter can operate within a temperature range of -20°C to 50°C.
The dimensions of the ME90A1502Q01 adapter are 150.0mm x 65.5mm x 34.0mm.
The ME90A1502Q01 adapter uses a Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm output connector.
The ME90A1502Q01 adapter is RoHS3 Compliant.
