| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage |

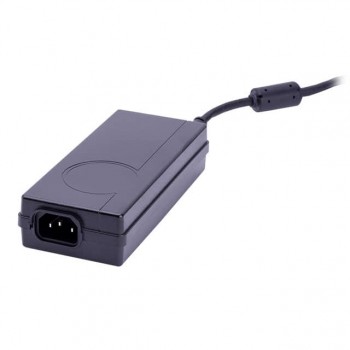

The ME90A1502N01 from SL Power Electronics is a 90-watt AC/DC desktop adapter designed for international use. It provides a stable 15V output at a maximum current of 6A, making it suitable for various power needs.
This adapter features a high efficiency rating of Level VI, ensuring reduced energy consumption. It operates within a wide input voltage range of 90 to 264 VAC and is approved by CE for safety and compliance.
The unit is designed in a desktop form factor (Class II) and utilizes a standard IEC 320-C8 input connector. The output is delivered via a 2.1mm I.D. x 5.5mm O.D. barrel plug with a cord length of 59 inches (1.50m). Its dimensions are 5.91" L x 2.58" W x 1.34" H (150.0mm x 65.5mm x 34.0mm).
With applications noted in the medical field, the ME90A1502N01 offers reliable power conversion. It operates within an ambient temperature range of -20°C to 50°C.
The ME90A1502N01 has an output voltage of 15V and a maximum output current of 6A.
The power rating of the ME90A1502N01 is 90W.
The ME90A1502N01 operates within a temperature range of -20°C to 50°C.
It uses a Barrel Plug with dimensions 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
The input connector is an IEC 320-C8.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
