| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,084 pcs
|
3084 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
212 pcs
|
212 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Form Factor | |
| Storage Temperature | |
| Tape & Reel | |
| Weight |

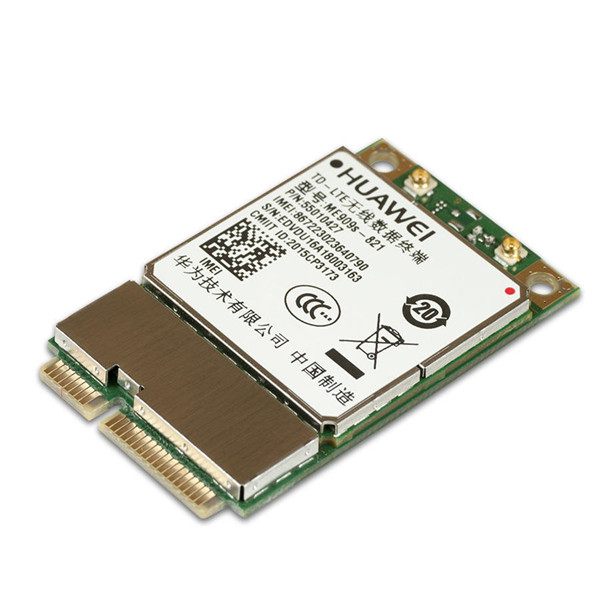

The HUAWEI ME909S-821 Mini PCIe Module is an LTE Category 4 module based on Hi-Silicon chipset, supporting 150 Mbps downlink and 50 Mbps uplink. It features LTE bands B1, B3, B8, B39, B40, B41(38), and GSM frequencies 1800/900 MHz. The module is designed for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial routers, and safety monitoring. It is compact, measuring 30 mm x 30 mm x 2.57 mm, and weighs approximately 5 grams. The module operates within -30°C to 75°C, extended to -40°C to 85°C, and is RoHS3 compliant. It supports high-speed UART, USB 2.0, USIM, PCM voice, and multiple GPIOs, with output power of +23 dBm for LTE. The power supply voltage ranges from 3.2V to 4.2V.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.85 | $5.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It supports LTE FDD Category 4 (Cat4).
The downlink data rate is 150 Mbps.
It supports LTE bands B1, B3, B8, B39, B40, B41(38).
It operates at 3.2 V to 4.2 V.
The dimensions are 30 mm x 30 mm x 2.57 mm.
It operates within -30°C to 75°C.
Yes, it is RoHS3 compliant.
