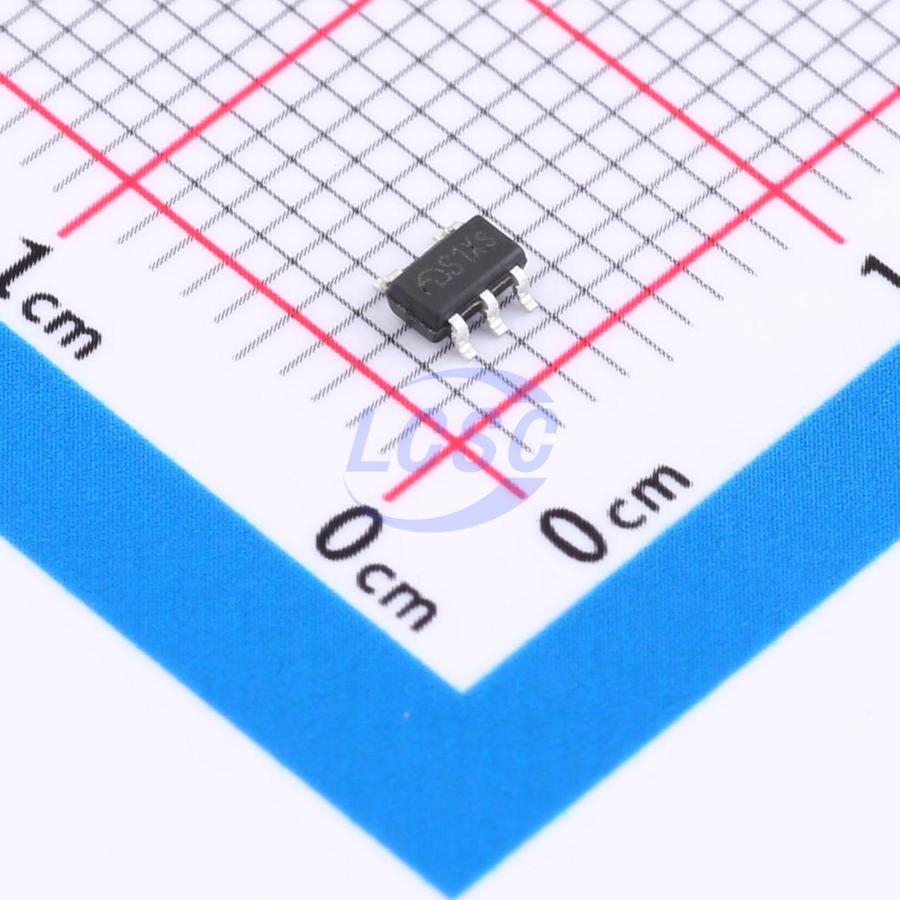

ME6211C28M5G-N The ME6211C28M5G-N is a low dropout (LDO) voltage regulator from Micro One. It features a fixed 2.8V output and a maximum output current of 450mA.
Mfr Part #:

ME6211C28M5G-N

Available from 1 distributors
Mfr Name: Micron Technology
Micron Technology
The ME6211C28M5G-N is a low dropout (LDO) voltage regulator from Micro One. It features a fixed 2.8V output and a maximum output current of 450mA.
✓ Total Stock: 3,196 pcs

ME6211C28M5G-N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,196 pcs
On Request
3196 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ME6211C28M5G-N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Operating Temperature
Output Current
Output Voltage
Package / Case
View Similar Products (0)

ME6211C28M5G-N Description

Short technical summary and product information.

The ME6211C28M5G-N is a positive fixed LDO voltage regulator manufactured by Micro One. It provides a stable 2.8V output voltage with a maximum output current capability of 450mA. The device operates with a maximum input voltage of 6V and exhibits a typical dropout voltage of 220mV at 200mA.



Designed for efficient power management, this regulator is housed in a compact SOT-23-5 package, making it suitable for space-constrained applications. Its typical PSRR is 70dB at 1kHz, indicating good ripple rejection. The operating temperature range is from -40°C to 85°C.



This LDO voltage regulator is well-suited for various electronic circuits requiring a reliable and fixed voltage supply. Its specifications make it a practical choice for battery-powered devices and other applications where power efficiency and stability are critical.

ME6211C28M5G-N Quick Information

Product Type: LDO Voltage Regulator
Series: ME6211
Canonical Name: ME6211C28M5G-N LDO Voltage Regulator
Subcategory: LDO Voltage Regulator

ME6211C28M5G-N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ME6211C28M5G-N Features

  • Fixed 2.8V output voltage.
  • 450mA maximum output current.
  • 6V maximum input voltage.
  • Low dropout voltage of 220mV.
  • Compact SOT-23-5 package.

ME6211C28M5G-N Applications

  • Power management circuits.
  • Battery-powered devices.
  • Portable electronics.
  • General voltage regulation.

ME6211C28M5G-N FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage of the ME6211C28M5G-N?

The ME6211C28M5G-N has a fixed output voltage of 2.8V.

What is the maximum output current for the ME6211C28M5G-N?

The ME6211C28M5G-N can provide a maximum output current of 450mA.

What is the maximum input voltage for this LDO regulator?

The maximum input voltage for the ME6211C28M5G-N is 6V.

What is the dropout voltage of the ME6211C28M5G-N at 200mA?

The typical dropout voltage for the ME6211C28M5G-N is 220mV at 200mA.

What is the operating temperature range for the ME6211C28M5G-N?

The ME6211C28M5G-N operates within a temperature range of -40°C to 85°C.

What package type is the ME6211C28M5G-N available in?

The ME6211C28M5G-N is available in a SOT-23-5 package.
