| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Noise | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Output Voltage | |
| Package / Case | |
| Supply Voltage |

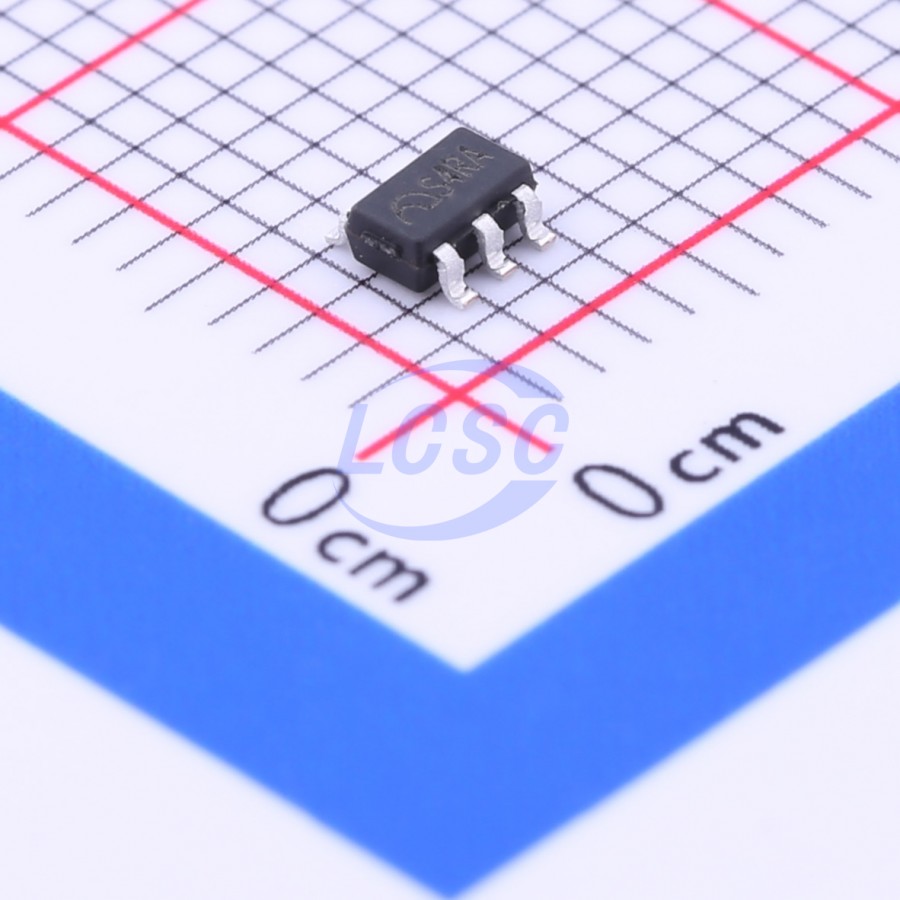

The ME6211C12M5G-N is a fixed output voltage regulator manufactured by MICRONE (Nanjing Micro One Elec). It provides a stable 1.2V output with a maximum output current of 300mA.
Key electrical specifications include a low dropout voltage of 280mV at 100mA and 500mV at 200mA, a wide input voltage range up to 6V, and low noise (50uVrms) with high PSRR (70dB at 1kHz). The device also features over-current protection, short-circuit protection, and an enable control.
Operating across a temperature range of -40℃ to +150℃, the ME6211C12M5G-N is suitable for various applications. It is supplied in a compact SOT-23-5 surface-mount package, making it ideal for space-constrained designs. The standby current is a low 30uA.
This regulator is designed for applications requiring a reliable and efficient power supply solution. Its features make it suitable for portable electronics, battery-powered devices, and other general-purpose power management needs.
The output voltage is fixed at 1.2V.
The output current is 300mA.
It is available in a SOT-23-5 package.
The operating temperature range is -40°C to +150°C.
The typical standby current is 30μA.
Yes, it features an enable control pin.
