ME6203A50M3G The ME6203A50M3G is a low-dropout (LDO) voltage regulator from MICRONE (Nanjing Micro One Elec) providing a fixed 5V output. It supports up to 300mA current with a low dropout voltage.
Mfr Part #:

ME6203A50M3G

Available from 2 distributors
Mfr Name: Micron Technology
Micron Technology
The ME6203A50M3G is a low-dropout (LDO) voltage regulator from MICRONE (Nanjing Micro One Elec) providing a fixed 5V output. It supports up to 300mA current with a low dropout voltage.
✓ Total Stock: 6,282 pcs

ME6203A50M3G Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
4,409 pcs
On Request
4409 pcs On Request 1 On Request On Request 21+ On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,873 pcs
On Request
1873 pcs On Request 1 On Request On Request 20130322//A/ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ME6203A50M3G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Current
Output Voltage
Package / Case
View Similar Products (0)

ME6203A50M3G Description

Short technical summary and product information.

The ME6203A50M3G is a low-dropout (LDO) linear voltage regulator manufactured by MICRONE (Nanjing Micro One Elec). It is designed to provide a stable and reliable 5.0V output voltage, capable of supplying up to 300mA of current. This regulator features a low quiescent current, typically 40µA, which enhances power efficiency, making it suitable for battery-powered applications.



Key electrical characteristics include a low dropout voltage, typically 300mV at 100mA load, and high output voltage accuracy of ±2%. The device operates over a wide input voltage range of 2.5V to 16V and includes overcurrent and thermal shutdown protection for enhanced reliability. Its stable performance is maintained even with small ceramic capacitors (≥1µF).

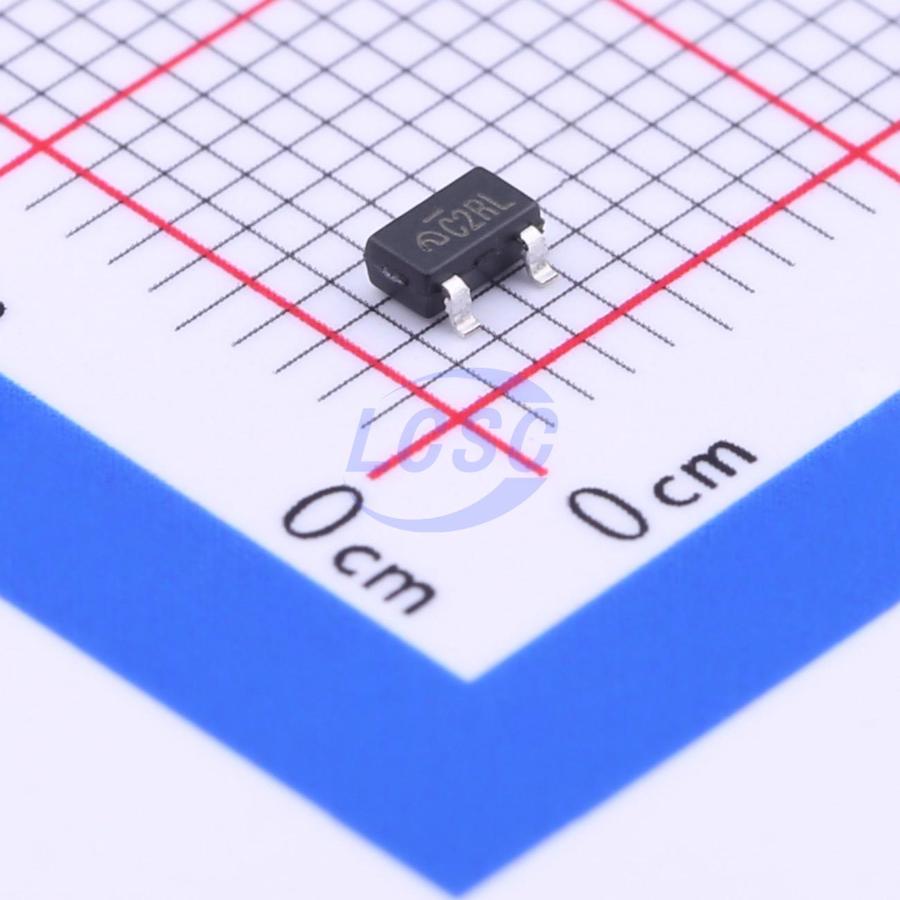

The ME6203A50M3G is housed in a compact SOT-23-3 surface-mount package, making it ideal for space-constrained designs in portable electronics and IoT applications. The SOT-23-3 package is widely adopted for its small footprint and ease of integration into printed circuit boards.



This LDO regulator is well-suited for various applications requiring stable, low-noise voltage regulation, such as battery-powered devices, portable electronics, and power management circuits. Its features contribute to improved power efficiency and reliable operation in demanding environments.

ME6203A50M3G Quick Information

Product Type: Low-Dropout Voltage Regulator
Series: ME6203
Canonical Name: ME6203A50M3G Low-Dropout Voltage Regulator
Subcategory: Low-Dropout (LDO)

ME6203A50M3G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ME6203A50M3G Features

  • Fixed 5.0V output voltage.
  • Up to 300mA output current.
  • Low dropout voltage: 300mV typical.
  • High accuracy: ±2% tolerance.
  • Compact SOT-23-3 package.

ME6203A50M3G Applications

  • Battery-powered portable devices and IoT modules.
  • Power regulation for microcontrollers and sensors.
  • Automotive electronics with wide temperature range.
  • Wireless communication and RF circuits.
  • Industrial control systems requiring low noise supply.

ME6203A50M3G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the ME6203A50M3G?

The output voltage is fixed at 5V with a tolerance of ±2%.

What is the input voltage range for this regulator?

The input voltage range is 2.5V to 16V, with an absolute maximum of 40V.

What is the maximum output current?

The maximum output current is 300mA.

What is the dropout voltage at 100mA load?

The typical dropout voltage is 300mV at 100mA load.

What is the operating temperature range?

The operating temperature range is -45°C to +150°C.

What package is the ME6203A50M3G available in?

It is available in a SOT-23-3 surface mount package.

What is the quiescent current consumption?

The typical quiescent current is 40µA, and it drops to 1.6µA in shutdown mode.
