| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

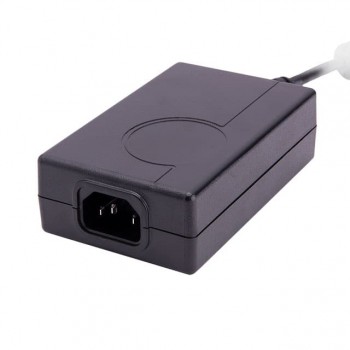

This AC/DC desktop adapter from SL Power Electronics, part number ME60A4802Q01, delivers 65W of power with a 48V output voltage and a maximum current of 1.35A. It operates with an input voltage range of 90 to 264 VAC and meets Level VI efficiency standards.
The adapter is designed for medical applications and features a compact desktop form factor (Class II). It includes a positive center barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) and an IEC 320-C18 input connector, with the input cord sold separately. The operating temperature range is from -20°C to 70°C.
Key specifications include a low no-load power consumption of 210mW (Max) and dimensions of 108.0mm x 67.9mm x 32.7mm. The device is CE approved and suitable for international utilization. It is RoHS3 compliant and has an MSL rating of 1 Unlimited.
The output voltage is 48V.
The maximum output current is 1.35A.
The power rating is 65W.
The input voltage range is 90 to 264 VAC.
The operating temperature range is -20°C to 70°C.
It has a Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
It is RoHS3 Compliant.
