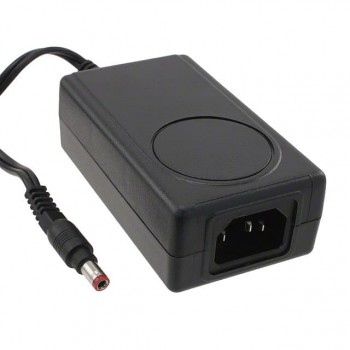

This AC/DC desktop adapter from SL Power Electronics, part number ME40A1802Q01, delivers 40 watts of power with an 18V output at a maximum current of 2.22A. Designed for international utilization, it operates within a wide input voltage range of 90 to 264 VAC.
The ME40A1802Q01 meets Level VI efficiency standards and is suitable for medical applications. Its compact desktop form factor (Class II) measures 95.5mm x 54.0mm x 31.0mm. The adapter features a positive center barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) and requires a separate input cord connected via an IEC 320-C18 input connector.
Key specifications include an operating temperature range of -20°C to 50°C and a low no-load power consumption of 100mW maximum. The approval agencies include CB, CE, DEMKO, and UL, ensuring compliance with various international standards.
The ME40A1802Q01 provides an output voltage of 18V and a maximum output current of 2.22A.
The power rating of the ME40A1802Q01 adapter is 40W.
The ME40A1802Q01 meets Level VI efficiency.
The ME40A1802Q01 is designed for medical applications.
The operating temperature range for the ME40A1802Q01 is -20°C to 50°C.
The dimensions of the ME40A1802Q01 are 95.5mm x 54.0mm x 31.0mm.
