| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Turn On Time | |
| Voltage | |
| Width |

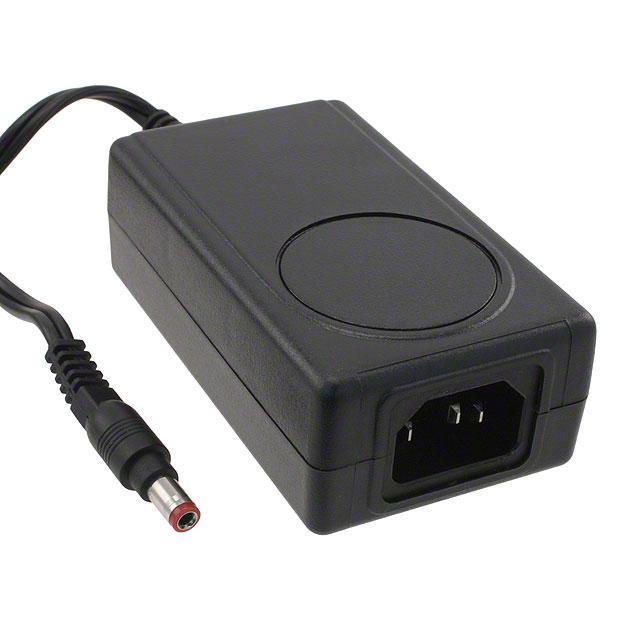

The SL Power Electronics ME40A1203Q01 is a 40-watt single-output external power adapter from the ME40 series, specifically designed for medical applications. It accepts a universal input voltage range of 90 to 264 VAC and provides a stable 12V output.
This power adapter features an IP22 rated enclosure and is built for environments where AC mains power may be unstable. It boasts high performance with excellent EMI, EMC, and noise characteristics, ensuring easy integration into end equipment. The ME40A1203Q01 meets stringent safety standards including IEC/EN/UL60601-1, 3rd edition, and carries CE and UKCA marks.
Key electrical specifications include a typical efficiency of 87%, a low no-load power consumption of less than 0.1W, and a long E-cap life of over 8 years. It also offers over-temperature, overload, overvoltage, and short-circuit protection with auto-recovery features. The adapter has a Mean Time Between Failures (MTBF) of over 1,000,000 hours.
Designed as a desktop form factor (Class II), it utilizes an IEC 320-C18 input connector and a 2.5mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output connector with a positive center polarization. The operating temperature range is -20°C to 50°C. This adapter is compliant with DoE Efficiency Level VI requirements and RoHS3 standards.
The input voltage range is 100 to 240 VAC at 47 to 63 Hz, single phase.
The operating temperature range is -20°C to 50°C.
It is a desktop (Class II) adapter measuring 95.5mm x 54.0mm x 31.0mm (3.76" x 2.13" x 1.22").
It is approved to EN/IEC/UL60601-1 3rd edition for medical safety.
Typical efficiency is 87%, meeting DoE Level VI requirements with less than 0.1W no-load power consumption.
It includes overtemperature shutdown with auto-recovery, overload protection (130-180% of rating, hiccup mode), overvoltage protection (hiccup mode), and short circuit protection (hiccup mode, auto-recovery).
The warranty period is 3 years.
