| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Tape & Reel | |
| Turn On Time | |
| Voltage |
The SL Power Electronics ME30A1803F01 is part of the ME30 series, offering a 30W AC/DC external power adapter solution. This model provides a stable 18V output voltage and accepts a wide input voltage range of 90 to 264 VAC, making it suitable for international use.
Designed with medical applications in mind, this adapter features medical safety approvals and meets stringent EMC standards including EN55011/CISPR11 Class B and UL/EN/IEC60601-1-2. It boasts excellent EMI, EMC, and noise performance for easy integration into end equipment. The adapter has an IP22 rated enclosure and a typical efficiency of 87%.
Key electrical specifications include a maximum input current of 1.2A at 115 VAC, a hold-up time of 20 mS minimum, and a no-load power consumption below 0.1W. The unit is protected against overtemperature, overload, and short circuits. It operates within a temperature range of -20°C to 50°C.

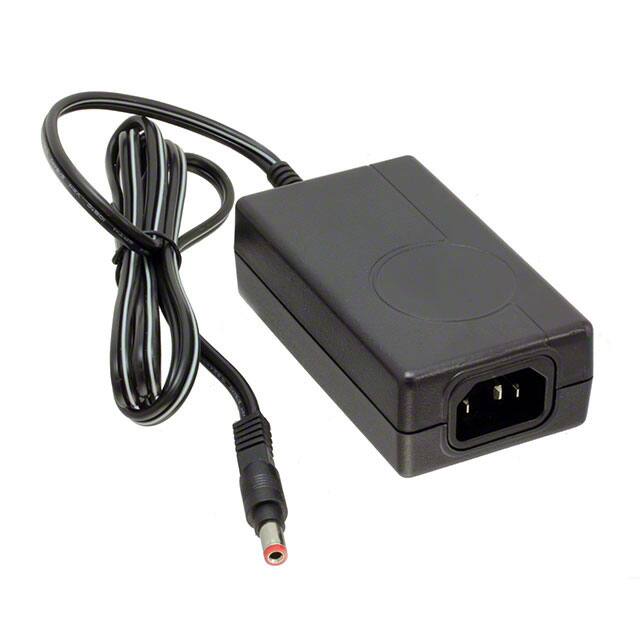

The ME30A1803F01 has a compact desktop form factor with dimensions of 95.5mm x 54.0mm x 31.0mm. It features an IEC 320-C14 input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The included cord length is 4.7 feet (1.45m).
The ME30A1803F01 provides an 18V output voltage and up to 30W of continuous output power.
This power adapter accepts a universal input voltage range of 90 to 264 VAC.
The operating temperature range for this adapter is -20°C to 50°C.
Yes, the RoHS status is RoHS3 Compliant.
The typical efficiency of this power adapter is 87%.
The adapter is approved to IEC/EN/UL60601-1, 3rd edition, and meets EMC standards UL/EN/IEC60601-1-2, 4th edition.
