| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Turn On Time | |
| Voltage | |
| Width |

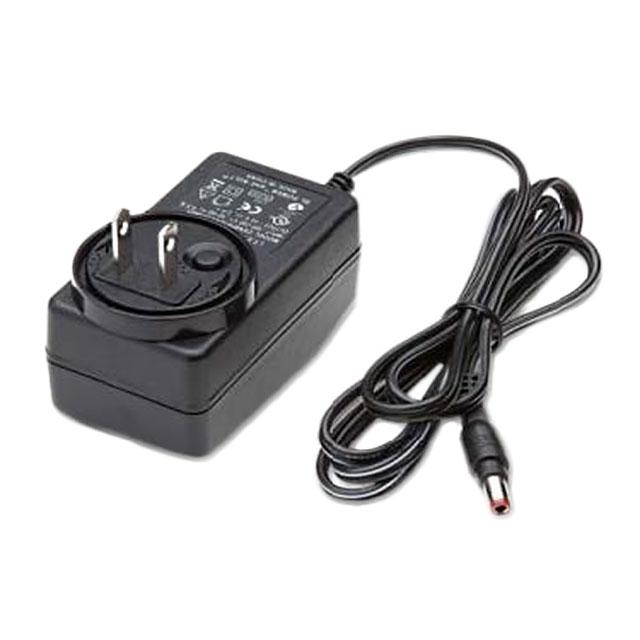

The SL Power ME30A1803B01 is part of the ME30 series of external power adapters, designed for medical applications requiring reliable power. This adapter provides up to 30 Watts of output power with an 18V output voltage and accepts a universal input of 90 to 264 VAC.
Key features include medical safety approvals (IEC/EN/UL60601-1, 3rd edition), compliance with EMC standards (EN55011/CISPR11, FCC Part 15.109 Class B, UL/EN/IEC60601-1-2 4th edition), and DoE Efficiency Level VI requirements. The adapter boasts an IP22 rated enclosure, making it suitable for environments where AC mains power may be noisy or unstable.
With a typical efficiency of 87% and a no-load power consumption of less than 0.1W, it is energy-efficient. The unit has a long E-cap life of over 8 years and an MTBF exceeding 1,000,000 hours, ensuring high reliability. It is designed for wall-mount applications and comes with a 4.7-foot cord.
This adapter is RoHS compliant and suitable for various medical equipment and other applications demanding stable and safe power delivery.
100-240 VAC, 47-63 Hz.
Output is 18V at 30W.
87% typical.
-20°C to 50°C.
Less than 0.1W.
1,000,000 hours minimum at 110/220VAC full load, 25°C ambient per Telcordia 332.
20 ms minimum at full load with 100 VAC input.
