| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Tape & Reel | |
| Turn On Time | |
| Voltage |

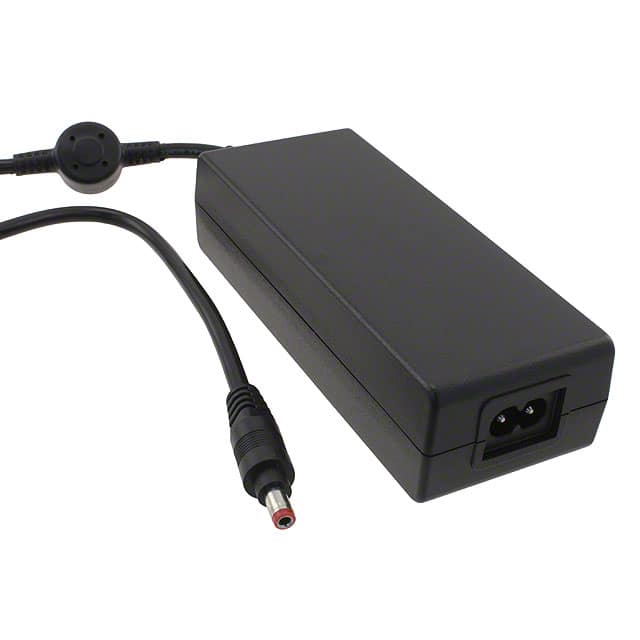

The SL Power ME30A0503N01 is a 20W AC/DC external power adapter from the ME30 series, designed for medical applications. It accepts a universal input voltage range of 90 to 264 VAC and provides a stable 5V output.
This adapter features a high efficiency of 87% typical and meets DoE Efficiency Level VI requirements, ensuring minimal energy waste. It is built with a robust IP22 rated enclosure and includes safety approvals such as IEC/EN/UL60601-1, 3rd edition, along with CE and UKCA marking. The unit is also compliant with EN55011/CISPR11 and FCC Part 15.109 Class B for emissions, and UL/EN/IEC60601-1-2 for EMC.
Designed for reliability, the ME30A0503N01 boasts a Mean Time Between Failures (MTBF) of over 1,000,000 hours and an E-Cap life exceeding 8 years. It incorporates over-temperature, overload, and short-circuit protection with auto-recovery features. The adapter has a compact desktop form factor with dimensions of 95.5mm x 54.0mm x 31.0mm and uses an IEC 320-C8 input connector and a 2.5mm I.D. x 5.5mm O.D. barrel plug output connector.
The output voltage is 5V.
The adapter provides 20W to 30W of continuous output power.
The input voltage range is 100 to 240 VAC.
The typical efficiency is 87%.
The operating temperature range is -20°C to 50°C.
It is approved to IEC/EN/UL60601-1, 3rd edition.
The MTBF is greater than 1,000,000 hours.
