| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Turn On Time | |
| Voltage | |
| Width |

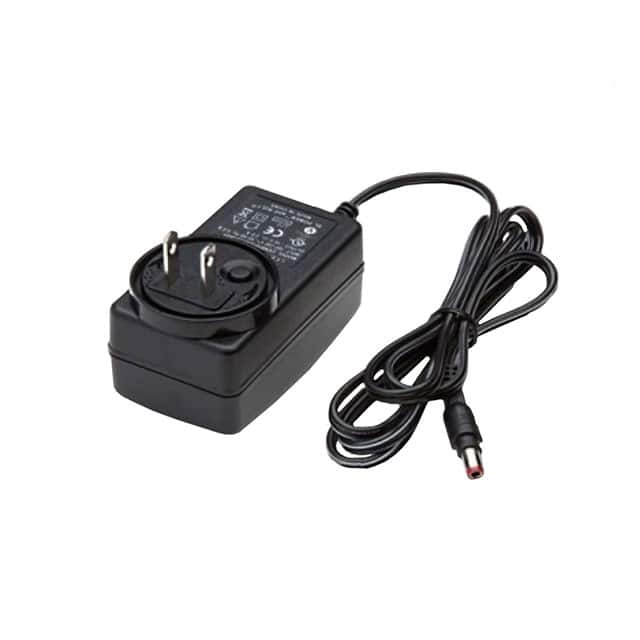

The SL Power Electronics ME30A0503C01 is a 20W AC/DC external power adapter from the ME30 series, featuring a 5V output. This medical-grade adapter is designed for applications requiring reliable power, even in environments with noisy or unstable AC mains. It accepts a universal input voltage range of 90 to 264 VAC and meets DoE Efficiency Level VI requirements.
The adapter boasts an IP22 rated enclosure and offers excellent EMI/EMC performance, ensuring easy integration into end equipment. Key electrical specifications include a typical efficiency of 87%, a low no-load power consumption of less than 0.1W, and a hold-up time of 20 mS minimum. It is protected against overtemperature, overload, and short circuits.
Designed for medical applications, the ME30A0503C01 complies with safety standards IEC/EN/UL60601-1, 3rd edition, and meets EMC requirements per UL/EN/IEC60601-1-2, 4th edition. It also meets EN55011/CISPR11 and FCC Part 15.109 Class B emissions standards. The unit features a NEMA 1-15P input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm). Its compact dimensions are 96.0mm x 55.0mm x 33.6mm.
100 to 240 VAC, ±10% (90-264 VAC).
5V at 20W continuous.
-20°C to 50°C.
87% typical.
Approved to IEC/EN/UL60601-1, 3rd edition.
>1,000,000 hours at full load, 110/220 VAC, 25°C.
Wall mount (Class II).
