| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

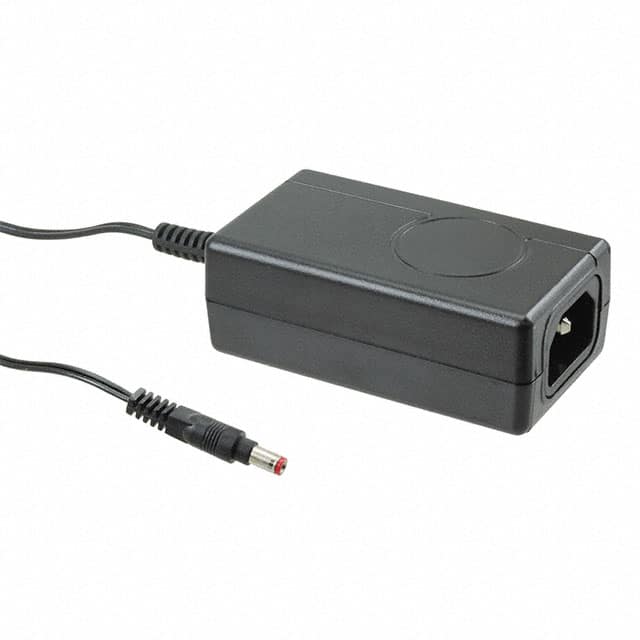

This AC/DC desktop adapter from SL Power Electronics, part number ME20A1203F01, delivers 18 watts of power with a 12V output at 1.5A. It is designed for international use and meets Level VI efficiency standards.
The adapter features a standard IEC 320-C14 input connector and a barrel plug output with positive center polarization (2.5mm I.D. x 5.5mm O.D.). Its compact dimensions are 84.0mm x 47.0mm x 31.0mm. The operating temperature range is -20°C to 50°C, and it consumes a maximum of 100mW at no load.
Designed for applications requiring reliable power, this adapter is suitable for medical equipment and other general-purpose uses. It includes CE approval agency markings.
The output voltage is 12V.
The maximum current output is 1.5A.
The power rating is 18W.
The operating temperature range is -20°C to 50°C.
It uses an IEC 320-C14 input connector.
The dimensions are 84.0mm x 47.0mm x 31.0mm.
Yes, it is RoHS3 Compliant.
