| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Power (Watts) | |
| Region Utilized | |
| Turn On Time | |
| Voltage | |
| Width |

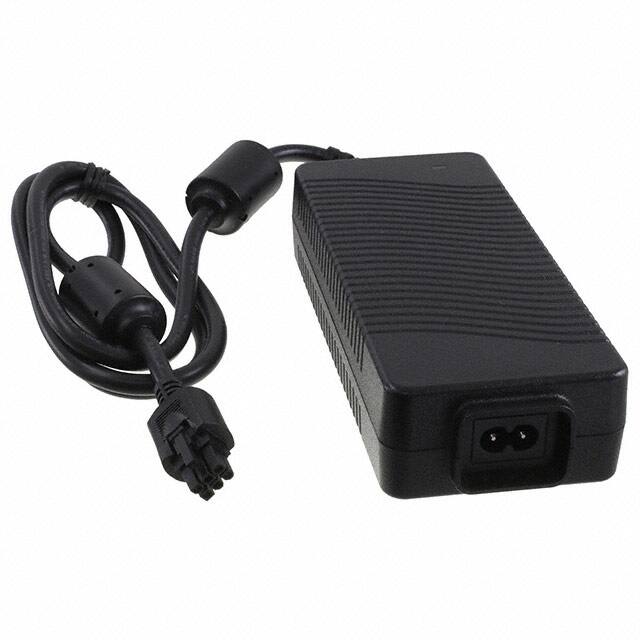

The SL Power ME150A1851N01 is part of the ME150 series of 150W single-output external power adapters designed for medical applications. It accepts a universal input voltage range of 85 to 264 VAC, making it suitable for international use.
This adapter provides up to 150 Watts of continuous output power at 18V. It meets DoE Efficiency Level VI requirements and features an IP22 rated enclosure, making it ideal for environments where AC mains power may be unstable. The adapter is approved to EN/IEC/UL60601-1, 3rd edition, satisfying 2 MOPP requirements.
Key electrical specifications include a typical efficiency of 88%, a hold-up time of 20 mS minimum, and protections such as over-load, over-voltage, and short-circuit protection. The unit has a long E-cap life of over 7 years and an MTBF of greater than 250,000 hours.
The ME150A1851N01 has a desktop style package with dimensions of 174.0mm x 71.9mm x 38.1mm. It utilizes an IEC 320-C8 input connector and a rectangular 6-position output connector.
The output voltage is 18V.
The adapter provides 150W of continuous output power.
The input voltage range is 85 to 264 VAC.
The typical efficiency is 88%.
Yes, it features over-load protection in hiccup mode.
The operating temperature range is -20°C to 50°C.
The status is RoHS3 Compliant.
