| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Power (Watts) | |
| Region Utilized | |
| Turn On Time | |
| Voltage | |
| Width |

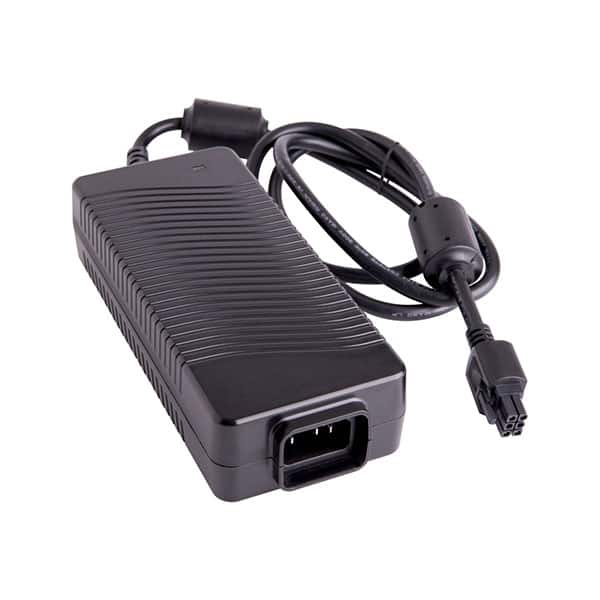

The SL Power Electronics ME150A1551F01 is part of the ME150 series, offering a 150W continuous output power with a single 15V output. This external power adapter is designed for medical applications and accepts a universal input voltage range of 85 to 264 VAC.
Key electrical specifications include a typical efficiency of 88% and compliance with DoE Efficiency Level VI requirements. It features over-load, over-voltage, and short-circuit protection with hiccup mode and auto-recovery. The adapter also includes over-temperature protection.
Designed as a desktop style package (Class I), it has an IP22 rated enclosure. The input connector is IEC 320-C14, and the output connector is a rectangular 6-position type. Operating temperature ranges from -20°C to 50°C.
This power adapter meets stringent safety and EMC standards, including EN/IEC/UL60601-1 3rd edition and UL/EN/IEC60601-1-2 4th edition for EMC. It also meets EN55011/CISPR11 and FCC Part 15.109 Class B emissions standards.
85 to 264 VAC.
15V.
150W continuous.
-20°C to 50°C.
Desktop (Class I).
EN/IEC/UL60601-1 3rd edition, 2 MOPP.
88% typical, meets Level VI and CoC Tier 2.
