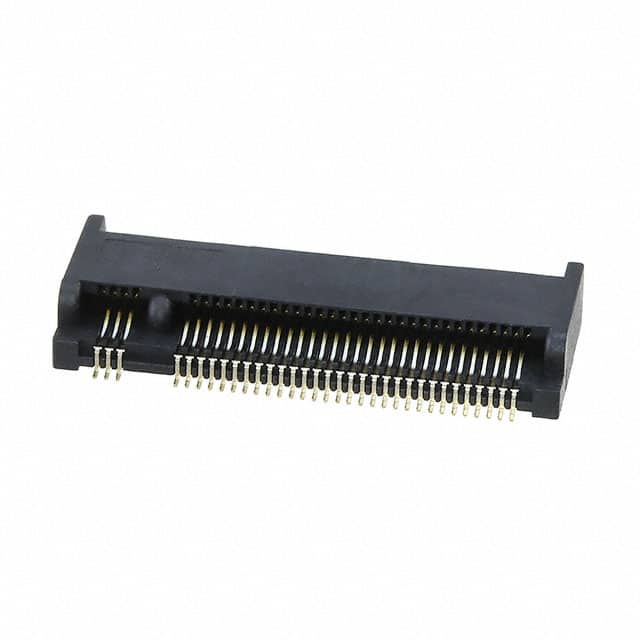

MDT320E01001 M.2 (NGFF) female card edge connector with 67 positions, 0.50mm pitch, gold plated contacts. Surface mount, right angle orientation with board lock and keyed design.
Mfr Part #:

MDT320E01001

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
M.2 (NGFF) female card edge connector with 67 positions, 0.50mm pitch, gold plated contacts. Surface mount, right angle orientation with board lock and keyed design.
✓ Total Stock: 75,000 pcs
$ Price Range: $1.00

MDT320E01001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
75,000 pcs
On Request
75000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MDT320E01001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Type
Color
Contact Finish
Contact Finish Thickness
Contact Material
Features
Gender
Lead Spacing
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Read Out
SVHC Present
Tape & Reel
Termination
Termination Style
View Similar Products (0)

MDT320E01001 Description

Short technical summary and product information.

The MDT320E01001 is an M.2 (NGFF) mini card female connector from Amphenol ICC. It features 67 positions arranged in 2 rows with a 0.50mm pitch. The connector has gold contact finish with 30.0µin thickness on copper alloy contacts. It is designed for surface mount, right angle mounting and includes board lock and keyed features for secure installation. The operating temperature range is -40°C to 80°C. This connector is suitable for use in various electronic devices requiring M.2 interface connectivity, such as SSDs and wireless modules.

MDT320E01001 Quick Information

Product Type: M.2 Card Edge Connector
Canonical Name: M.2 (NGFF) Mini Card Female Connector, 67 Position, 0.50mm Pitch, Surface Mount, Right Angle
Subcategory: M.2 (NGFF) Connector

MDT320E01001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MDT320E01001 Estimated Pricing

Qty Low High
4,500+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

MDT320E01001 Features

  • 67 positions with 0.50mm pitch.
  • Gold plated contacts with 30µin thickness.
  • Surface mount, right angle mounting.
  • Board lock and keyed design.
  • Operating temperature range -40°C to 80°C.

MDT320E01001 Applications

  • Used in M.2 SSD and wireless module connections.
  • Ideal for compact computing devices.
  • Suitable for industrial and consumer electronics.

MDT320E01001 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the MDT320E01001 connector have?

It has 67 positions arranged in 2 rows.

What is the pitch of this M.2 connector?

The pitch is 0.50mm (0.020").

What is the mounting type for this connector?

It is surface mount, right angle.

What is the contact finish and thickness?

The contacts are gold plated with a thickness of 30.0µin (0.76µm).

What is the operating temperature range?

The operating temperature range is -40°C to 80°C.

Does the connector have any special features?

Yes, it includes board lock and keyed features.
