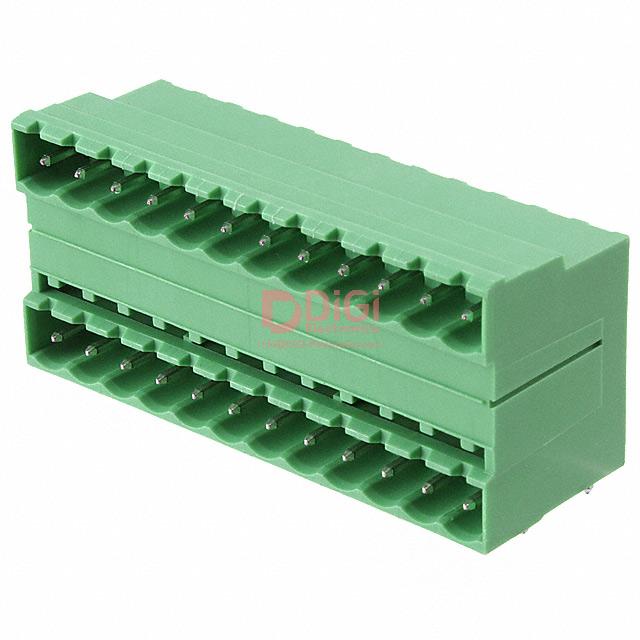

MDSTB2,5/12-G1 This Phoenix Contact MDSTB2,5/12-G1 is a 24-position terminal block header with a 5.08mm pitch. It features a 90° right-angle orientation and through-hole mounting.
Mfr Part #:

MDSTB2,5/12-G1

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
This Phoenix Contact MDSTB2,5/12-G1 is a 24-position terminal block header with a 5.08mm pitch. It features a 90° right-angle orientation and through-hole mounting.
✓ Total Stock: 48 pcs
$ Price Range: $0.23

MDSTB2,5/12-G1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
48 pcs
On Request
48 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MDSTB2,5/12-G1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
View Similar Products (0)

MDSTB2,5/12-G1 Description

Short technical summary and product information.

The Phoenix Contact MDSTB2,5/12-G1 is a terminal block header designed for robust connections. It offers 24 positions arranged over two levels, with 12 positions per level, and a standard pitch of 0.200 inches (5.08mm).



This header features male pins and a shrouded design for secure mating. The mounting type is through-hole, and the termination style is solder. Electrical specifications include an IEC current rating of 10A at 630V and a UL current rating of 15A at 300V.



The header orientation is 90° right-angle, making it suitable for specific PCB layouts. The series is COMBICON MDSTB, and the product status is active. It is supplied in bulk packaging.

MDSTB2,5/12-G1 Quick Information

Product Type: Terminal Block Header
Series: COMBICON MDSTB
Canonical Name: Phoenix Contact MDSTB2,5/12-G1 Terminal Block Header
Subcategory: Headers, Plugs and Sockets

MDSTB2,5/12-G1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MDSTB2,5/12-G1 Estimated Pricing

Qty Low High
1+ $0.23 $0.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

MDSTB2,5/12-G1 Features

  • 24 positions with 5.08mm pitch.
  • 90° right-angle header orientation.
  • Through-hole mounting type.
  • Rated for 10A at 630V (IEC).
  • Solder termination style.

MDSTB2,5/12-G1 Applications

  • Ideal for PCB terminal connections.
  • Suitable for right-angle mounting.
  • Used in power distribution modules.
  • Reliable for industrial automation.

MDSTB2,5/12-G1 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the MDSTB2,5/12-G1 terminal block header have?

The MDSTB2,5/12-G1 terminal block header has 24 positions.

What is the pitch of the MDSTB2,5/12-G1 terminal block header?

The pitch of the MDSTB2,5/12-G1 terminal block header is 5.08mm.

What are the IEC current and voltage ratings for the MDSTB2,5/12-G1?

The MDSTB2,5/12-G1 has an IEC current rating of 10A and a voltage rating of 630V.

What is the mounting type for the MDSTB2,5/12-G1 terminal block header?

The MDSTB2,5/12-G1 terminal block header is designed for through-hole mounting.

What is the orientation of the MDSTB2,5/12-G1 header?

The MDSTB2,5/12-G1 header has a 90° right-angle orientation.
