| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actual Diameter | |
| Connector Type | |
| Features | |
| Gender | |
| Industry Recognized Mating Diameter | |
| Internal Switch(s) | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Shielding | |
| Signal Lines | |
| Tape & Reel | |
| Termination | |
| Termination Style |

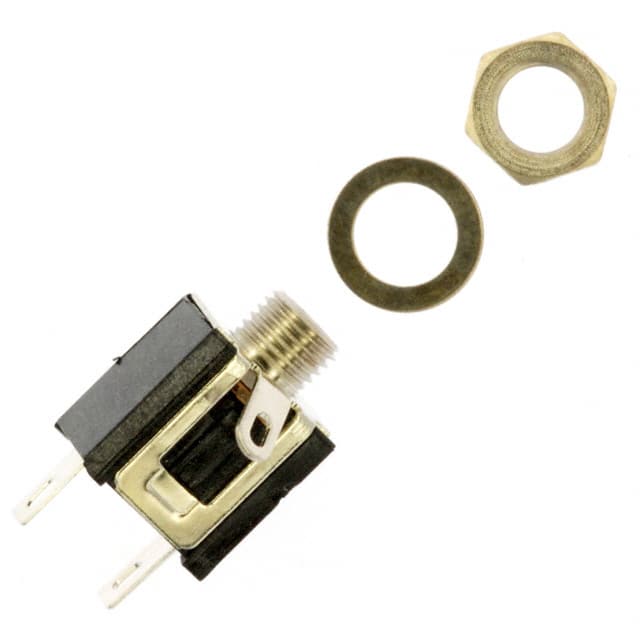

The MDSL2A is a mono phone jack connector from Conxall/Switchcraft. It is a female connector with a 2.46mm industry recognized mating diameter (0.097 inches) and an actual diameter of 0.101 inches (2.57mm). It features 2 conductors and 3 contacts, with a single internal switch for circuit selection. The connector is unshielded, making it suitable for basic audio applications. Mounting is achieved through panel mount with through hole solder eyelet terminals. The operating temperature range is -20°C to 65°C. The connector includes mounting hardware and a thread lock mechanism for secure installation. This type of connector is commonly used in audio equipment, musical instruments, and communication devices where a simple mono audio connection is required. The panel mount design allows for easy integration into enclosures, while the solder eyelet termination provides reliable connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.00 | $5.00 |
| 10+ | $4.26 | $4.26 |
| 20+ | $3.99 | $3.99 |
| 50+ | $3.80 | $3.80 |
| 100+ | $3.61 | $3.61 |
| 200+ | $3.34 | $3.34 |
| 500+ | $3.22 | $3.22 |
| 1,000+ | $3.07 | $3.07 |
| 2,000+ | $2.88 | $2.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Phone Jack.
Female.
2 Conductors, 3 Contacts.
Panel Mount, Through Hole.
Yes, single switch.
-20°C to 65°C.
Mounting Hardware, Thread Lock.
