| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Pretravel | |
| Release Force | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

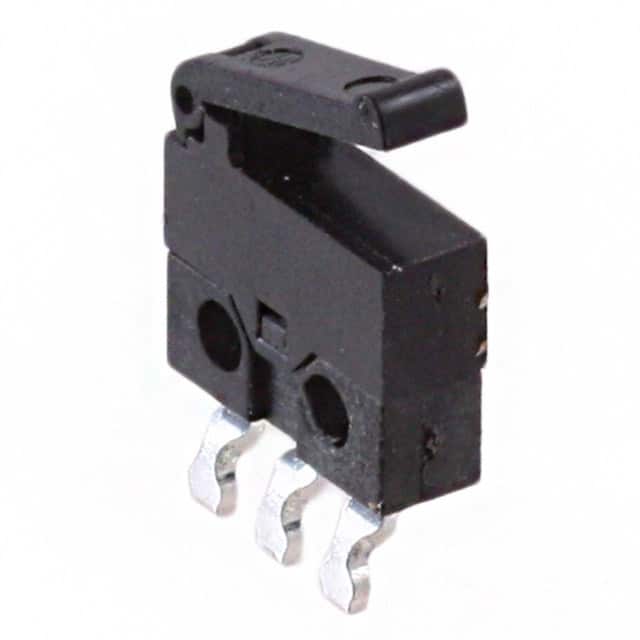

The C&K Components MDS6500AL02SL is a mini-size snap-acting switch from the MDS series. It features a snap-acting tactile feel and is designed for applications requiring detection of mechanical device presence.
This switch has an SPDT circuit and a contact rating of 300mA at 30VDC. The operating force is a maximum of 50gf, with a release force of 3g minimum. It offers a pre-travel of 1.8mm and an over-travel of 0.3mm.
The operating temperature range for this switch is -25°C to 70°C. It is available in a surface mount, right-angle mounting type with a gull wing termination style.
Applications for this switch include medical devices, consumer electronic devices, and ATCA applications. It is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch has a current rating of 300mA at 30VDC.
The operating voltage is 30 VDC.
It features an SPDT circuit.
The operating temperature range is -25°C to 70°C.
The mounting type is Surface Mount, Right Angle.
The termination style is Gull Wing.
