| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
272 pcs
|
272 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Width |

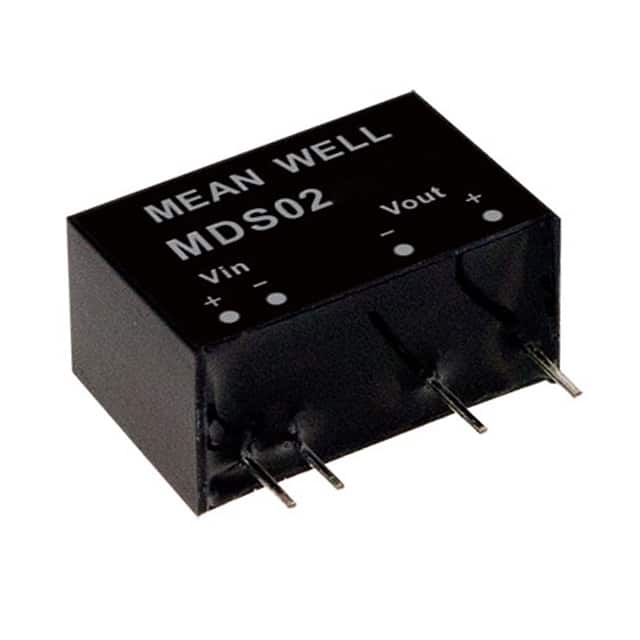

The MDS02N-05 is an isolated DC DC converter from Mean Well USA designed for board mount applications. It delivers 2 watts of output power with a single 5V output at 400 mA, achieving up to 80% typical efficiency. The module operates from a nominal 21.6V input and is suitable for use in medical equipment and other applications requiring isolation.
The converter is housed in a compact 7-SIP package with 4 leads and through hole mounting, measuring 19.5 mm x 9.8 mm x 12.5 mm. It features short circuit protection (SCP) and can operate over a wide temperature range of -40°C to 85°C, making it suitable for demanding environments.
With its isolated design, the MDS02N-05 provides reliable power conversion for systems requiring galvanic isolation between input and output. The through hole package allows for easy integration into PCB designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.26 | $6.26 |
| 10+ | $5.90 | $5.90 |
| 20+ | $5.46 | $5.46 |
| 100+ | $5.28 | $5.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 5 V.
The package type is 7-SIP Module with 4 leads.
The operating temperature range is -40°C to 85°C.
Yes, it is listed as RoHS3 Compliant.
The output current is 400 mA.
The power rating is 2 W.
Yes, it features short circuit protection (SCP).
