| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Supplier Device Package | |
| Termination Style | |
| Type | |
| Voltage | |
| Width |

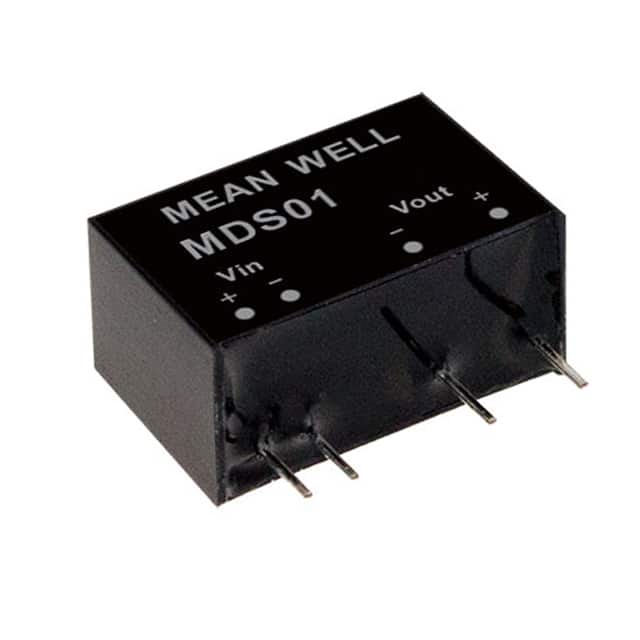

The MDS01N-05 is an isolated DC-DC converter module from Mean Well USA, part of the MDS01N series. It accepts an input voltage range of 21.6V to 26.4V and provides a regulated 5V output at 200mA, delivering 1W of power with 77% efficiency. The module features high reinforced isolation rated at 6kVDC and 4.2kVAC, making it suitable for medical applications where patient safety is critical. It is approved for medical safety according to ANSI/AAMI ES60601-1 with 1xMOPP/2xMOOP and has a low leakage current of less than 2μA. The converter operates over a wide temperature range of -40°C to 85°C. Built-in short circuit protection (SCP) is included. The component is housed in a compact 7-SIP module with 4 leads and uses through-hole mounting for secure board attachment.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $4.59 | $4.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The input voltage range is 21.6V to 26.4V.
The nominal output voltage is 5V.
It provides 6kVDC and 4.2kVAC reinforced isolation.
Yes, it is medical safety approved (1xMOPP/2xMOOP) according to ANSI/AAMI ES60601-1.
It is a 7-SIP module with 4 leads, through-hole mounting.
It is listed as RoHS3 compliant, but this is unverified and should be confirmed with the manufacturer.
