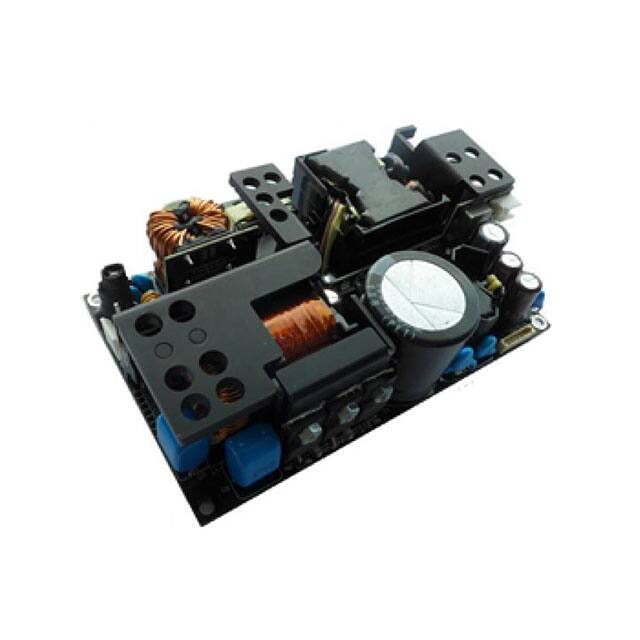

This Delta Electronics MDS-400APB12 AA is an AC/DC converter designed for ITE (Commercial) and Medical applications. It features an open-frame construction and chassis mount type, making it suitable for integration into various systems.
The converter delivers 400W of power with a current rating of 33.33A. Key electrical features include PFC, Remote On/Off, Remote Sense, Standby Output, and Universal Input. It operates efficiently with a stated efficiency of 91.5%.
Mechanically, the unit measures 127.0mm in length, 76.2mm in width, and 35.6mm in height. The operating temperature range is from -10°C to 70°C, with derating applied. The voltage rating is 4 kV.
Compliance is indicated by approval agencies such as CB Scheme, CE, EN, SIQ, TUV, and UL. It adheres to standard numbers including 50581, 55011, 55032, 60601-1, and 60950-1. The RoHS status is RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is Unaffected.
The MDS-400APB12 AA has a power output of 400W.
The current rating for the MDS-400APB12 AA is 33.33 A.
The MDS-400APB12 AA uses chassis mount.
The operating temperature range is -10°C to 70°C (With Derating).
Key features include PFC, Remote On/Off, Remote Sense, Standby Output, and Universal Input.
It is suitable for ITE (Commercial) and Medical applications.
The RoHS status is RoHS3 Compliant.
