| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

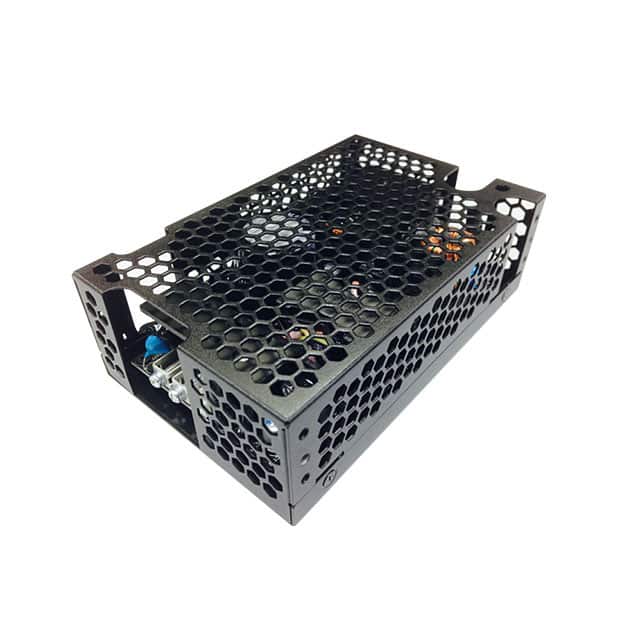

The Delta Electronics MDS-400ADB12 AA is an enclosed AC/DC converter designed for ITE (Commercial) and Medical applications. It delivers 400W of power with a single output.
Key electrical specifications include an output current of 33.33A and an efficiency of 91.5%. The unit operates within a temperature range of -10°C to 70°C with derating. It supports a universal input and features like PFC, Remote On/Off, Remote Sense, and Standby Output.
Mechanically, this converter is designed for chassis mounting and has dimensions of 140.0mm x 89.0mm x 45.0mm. It meets various standard numbers including 50581, 55011, 55032, 60601-1, and 60950-1, and carries approvals from agencies such as CB Scheme, CE, EN, SIQ, TUV, and UL.
Compliance information indicates RoHS3 compliance and an MSL rating of 1. The REACH status is unaffected.
-10°C to 70°C with derating.
Chassis Mount.
91.5%.
400W.
12V at 33.33A.
CB Scheme, CE, EN, SIQ, TUV, UL.
4 kV.
