| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

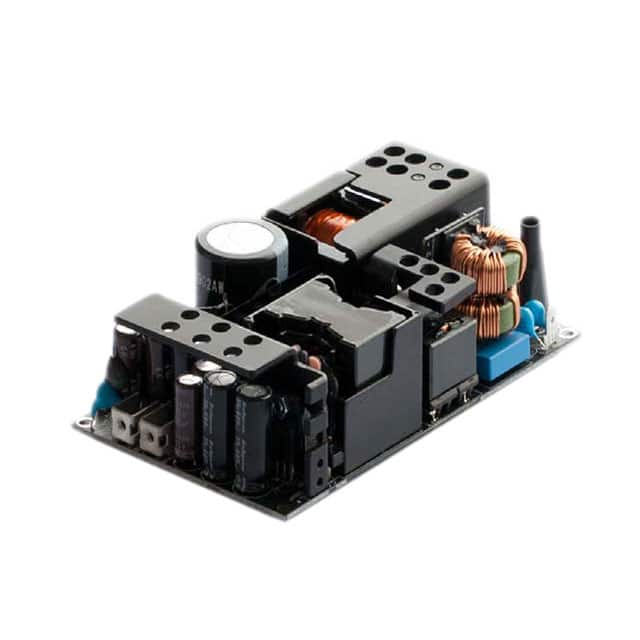

This Delta Electronics MDS-300APB12 AA is an AC/DC converter designed for ITE (Commercial) and Medical applications. It features an Open Frame construction and Chassis Mount type, making it suitable for various integration needs.
The converter provides a 12V output with a power rating of 220W, capable of reaching 300W with forced air. Key electrical specifications include an efficiency of 92.6% and a current output of 18.33A. It operates within a temperature range of -10°C to 70°C with derating.
Additional features include PFC, Remote On/Off, Remote Sense, Standby Output, and a Universal Input. The unit has an isolation voltage of 4 kV and complies with standards such as 50581, 55011, 55032, 60601-1, and 60950-1. Its dimensions are 127.0mm x 76.2mm x 35.6mm.
The output voltage is 12V.
It provides 220W continuous power, or 300W with forced air cooling.
The efficiency is 92.6%.
It uses chassis mount.
It operates from -10°C to 70°C with derating.
It is approved for ITE (Commercial) and Medical applications.
