| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

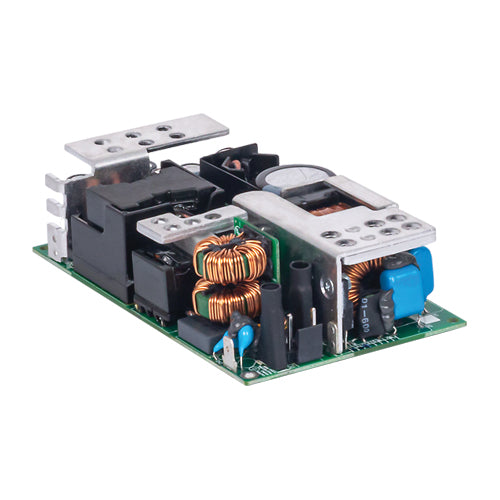

The Delta Electronics MDS-250APB24 AA is an open frame AC/DC power supply designed for commercial and medical applications. It provides a stable 24Vdc output with a maximum current of 10.41A, delivering up to 250W of power under forced air conditions.
This power supply accepts a wide input voltage range of 90-264Vac, making it suitable for global use. Key electrical features include built-in Power Factor Correction (PFC), a 5V/0.5A standby output, and remote On/Off and sense capabilities. The unit operates within a temperature range of -10°C to 70°C with derating.
With dimensions of 127.3mm x 76.5mm x 36.1mm, it is designed for chassis mounting. The MDS-250APB24 AA meets stringent medical safety certifications including IEC/EN 60601-1 and ANSI/AAMI ES 60601-1, and offers 2xMOPP protection, making it suitable for BF applications.
90-264Vac.
Chassis mount open frame.
-10°C to 70°C with derating.
24Vdc.
10.41A.
93%.
IEC/EN 60601-1, ANSI/AAMI ES 60601-1, 2xMOPP, suitable for BF applications.
