| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

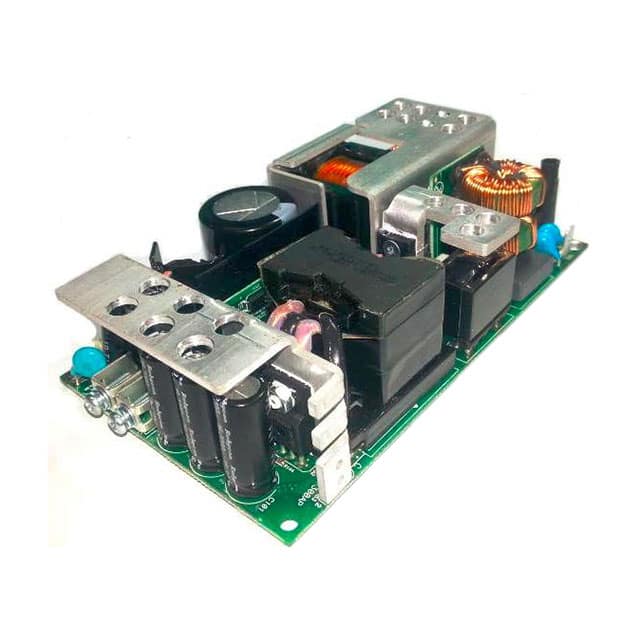

This Delta Electronics MDS-250APB12 AA is an AC/DC converter designed for ITE (Commercial) and Medical applications. It features an Open Frame construction with a Chassis Mount type.
The converter provides a 12V output with a current rating of 12.5A, delivering 150W of power, which can be boosted to 250W with forced air. Key electrical specifications include an efficiency of 90.5% and isolation voltage of 4 kV. It operates within a temperature range of -10°C to 70°C with derating.
Additional features include Remote On/Off, Remote Sense, Standby Output, and Universal Output. The dimensions are 127.0mm x 76.2mm x 35.6mm. It is compliant with various standards including 50581, 55011, 55032, 60601-1, and 60950-1.
The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level is 1 Unlimited. The REACH status is REACH Unaffected.
The operating temperature range is -10°C to 70°C with derating.
The converter provides a single 12V output at 12.5A.
The efficiency is 90.5%.
The input-to-output isolation voltage is 4kV.
The dimensions are 127.0mm x 76.2mm x 35.6mm (5.00" x 3.00" x 1.40").
It is approved by CB Scheme, CE, EN, SIQ, TUV, and UL, and complies with standards 50581, 55011, 55032, 60601-1, and 60950-1.
The converter is designed for chassis mount installation.
