| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

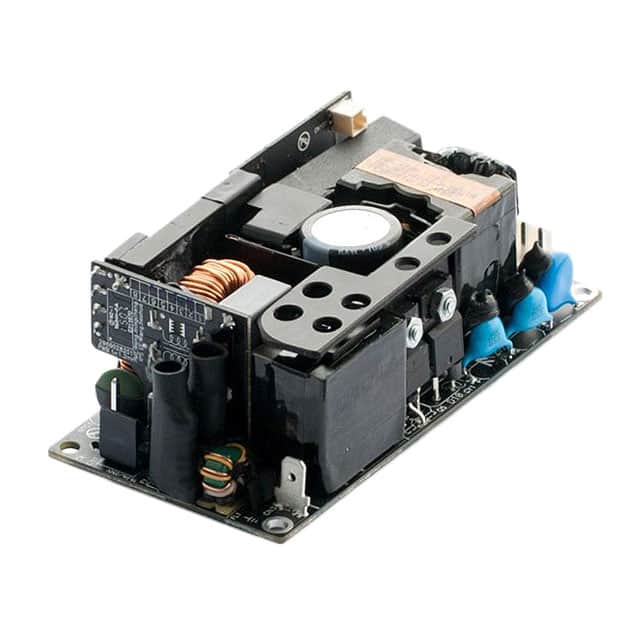

The Delta Electronics MDS-200APB36 AA is an open frame AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a 36V output voltage and a power output of 120W, with a peak capability of 200W under forced air conditions.
This converter boasts high efficiency at 94% and includes features such as Power Factor Correction (PFC) and Universal Input. Its dimensions are 101.9mm in length, 51.1mm in width, and 36.6mm in height, with a chassis mount type.
The operating temperature range is -10°C to 70°C with derating. It has undergone approvals from agencies including CB, CCC, CE, cURus, and TUV, ensuring compliance for various international standards.
-10°C to 70°C with derating.
94%.
4 kV.
CB, CCC, CE, cURus, TUV.
101.9 mm x 51.1 mm x 36.6 mm.
120W convection, 200W with forced air.
Yes, it is approved for medical applications.
