| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

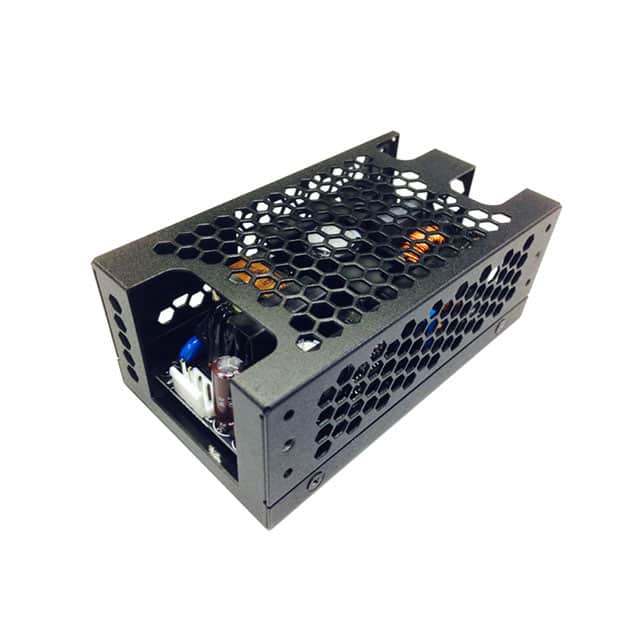

The Delta Electronics MDS-200ADB12 AA is an enclosed AC/DC converter designed for demanding applications. It provides a 110W power output, with a peak capability of 200W under forced air conditions, and operates with a high efficiency of 93%.
Key features include Power Factor Correction (PFC) and a universal input voltage range, making it versatile for various power environments. The converter is rated for 4 kV isolation voltage and operates within a temperature range of -10°C to 70°C, with derating at higher temperatures.
Designed for reliable integration, this unit features a chassis mount type and has dimensions of 113.9mm x 64.7mm x 44.7mm. It is approved by multiple agencies including CB Scheme, CE, EN, SIQ, TUV, and UL, and complies with standards such as 50581, 55011, 55032, 60601-1, and 60950-1.
Applications include ITE (Commercial) and Medical equipment, where its robust design and compliance certifications ensure safe and effective operation.
The output voltage is 12V and the output current is 9.17A.
It provides 110W with convection cooling and 200W with forced air cooling.
The operating temperature range is -10°C to 70°C with derating.
It uses chassis mount packaging.
It is approved by CB Scheme, CE, EN, SIQ, TUV, and UL.
The efficiency is 93%.
The dimensions are 113.9mm (length) x 64.7mm (width) x 44.7mm (height).
