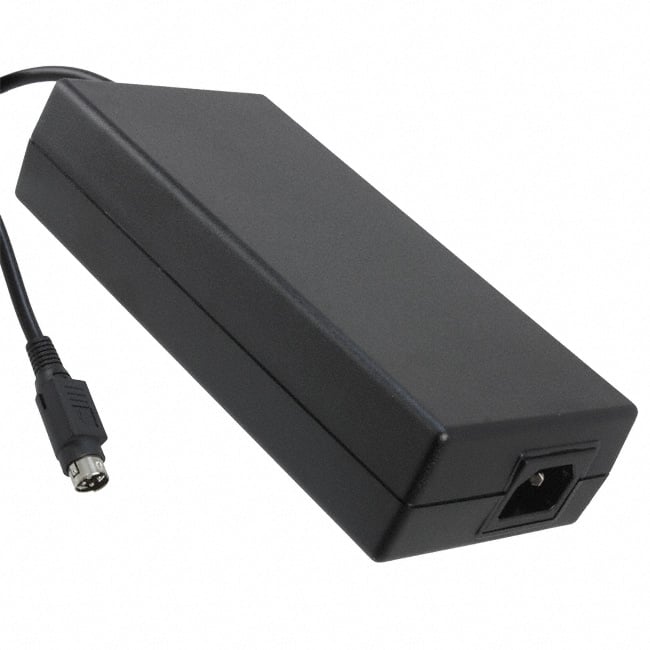

The Delta Electronics MDS-150AAS12 BA is an AC/DC desktop adapter designed for commercial and medical applications. It delivers a stable 12V output with a maximum current of 10A, resulting in a total output power of 120W.
This adapter meets Level VI efficiency standards, ensuring reduced energy consumption. It features an IEC 320-C14 input connector for power connection and a 4-pin Power DIN output connector. The operating temperature range is from 0°C to 40°C.
With dimensions of 170.0mm x 85.0mm x 40.0mm and a cord length of 1.20m, this adapter is suitable for various integration needs. It has undergone testing and compliance with standards such as 60601-1 and 60950-1, and carries approvals from CB Scheme, CE, EN, and UL.
Key electrical specifications include an input voltage range of 100-240 VAC and a no-load power consumption of 500mW maximum. The MDS-150AAS12 BA is suitable for ITE (Commercial) and Medical applications.
The output voltage is 12V and the output current is 10A.
The total output power is 120W.
It uses an IEC 320-C14 input connector.
The output connector is a Power DIN, 4 Pin.
The operating temperature range is 0°C to 40°C.
The no-load power consumption is a maximum of 500mW.
It meets Level VI efficiency.
