| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

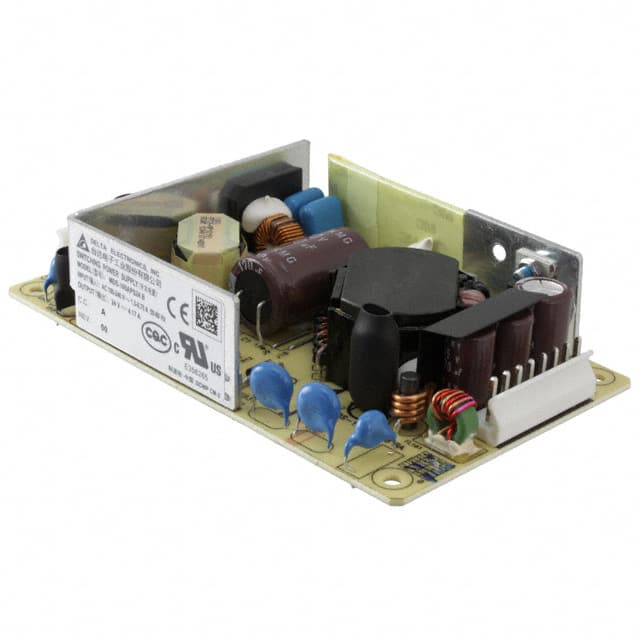

The Delta Electronics MDS-100APS24 BA is an AC/DC converter with a power rating of 80W, capable of 100W with forced air. It features an Open Frame construction and is designed for Chassis Mount installation.
This converter operates with Universal Input and is suitable for applications in ITE (Commercial) and Medical fields. Key electrical specifications include a current rating of 4.2A and a voltage rating of 4 kV. The operating temperature range is from -10°C to 70°C.
Compliance is indicated by RoHS3 status, and it meets various standard numbers including 50581, 55011, 55032, 60601-1, 60950-1, and 62368-1. The dimensions are 127.0mm in length, 76.2mm in width, and 31.1mm in height.
24V
-10°C ~ 70°C
CB Scheme, CE, CQC, EN, UL
88%
127.0mm x 76.2mm x 31.1mm
Chassis Mount
