| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

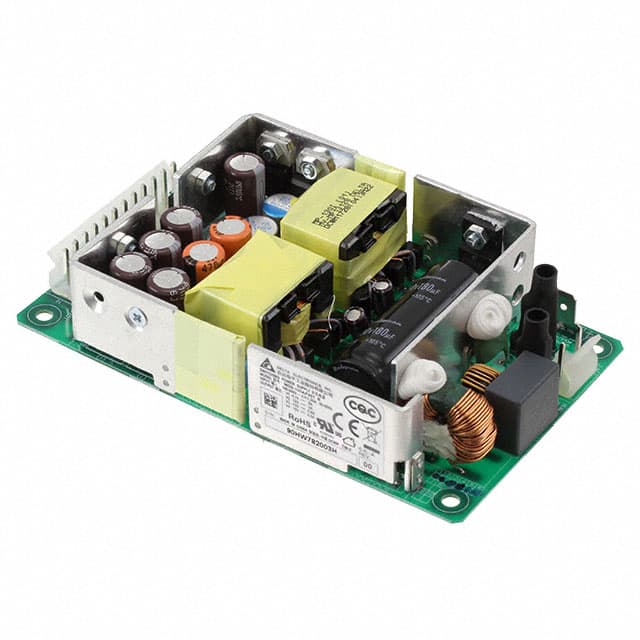

The Delta Electronics MDS-100AP401 BA is a 100W AC/DC converter designed for ITE (Commercial) and Medical applications. It features an Open Frame construction and Chassis Mount type, making it suitable for integration into various systems.
Key electrical specifications include a power output of 100W, an efficiency of 79.34%, and a current rating of 800 mA. The device supports Universal Input and has four outputs, including a 15V output. The operating temperature range is -10°C to 70°C with derating.
This converter meets several standard safety and performance requirements, including CB Scheme, CE, CQC, EN, and UL approvals. It also adheres to standards such as 50581, 55011, 55032, 60601-1, and 60950-1.
The physical dimensions are 127.0mm in length, 76.2mm in width, and 30.5mm in height. It is RoHS3 Compliant and has an MSL rating of 1.
5.1V, 12V, and ±15V.
100W.
79.34%.
Chassis Mount.
-10°C to 70°C with derating.
CB Scheme, CE, CQC, EN, UL.
ITE (Commercial) and Medical.
