| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Lead Style | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

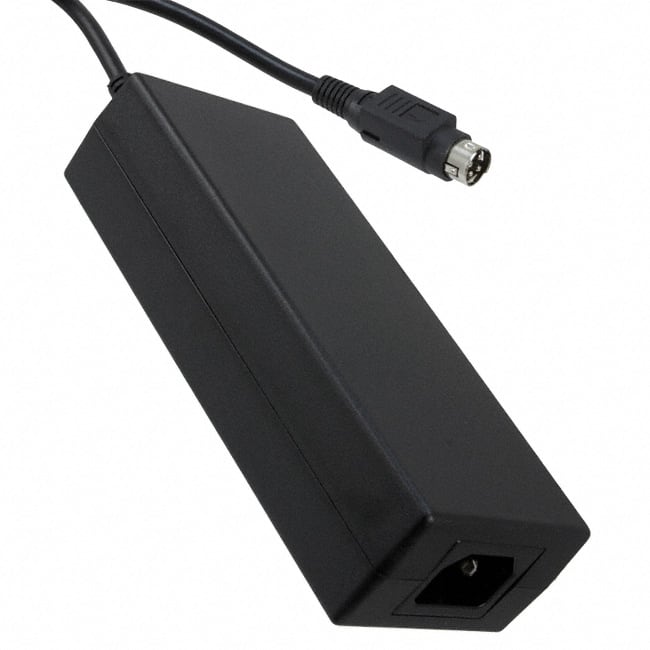

This Delta Electronics MDS-090AAS24 BA is an AC/DC desktop adapter designed for commercial and medical applications. It delivers a stable 24V output with a maximum current of 3.75A, providing a total output power of 90W.
The adapter is equipped with an IEC 320-C14 input connector, suitable for international use with its 100-240 VAC input voltage range. The output is delivered via a 4-pin Power DIN connector. It operates within a temperature range of 0°C to 40°C and meets Level V efficiency standards, with a no-load power consumption of 500mW maximum.
Mechanical specifications include a length of 150mm, width of 60mm, and height of 35mm, with a cord length of 1.2 meters. The unit is approved by CB Scheme, CE, EN, and UL, ensuring compliance with various safety and performance standards for ITE and medical equipment.
The adapter provides an output voltage of 24V and an output current of 3.75A.
The total output power is 90W.
It uses an IEC 320-C14 input connector.
The output connector is a Power DIN, 4 Pin.
The adapter is designed to operate between 0°C and 40°C.
The no-load power consumption is a maximum of 500mW.
This adapter meets Level V efficiency.
